JANS2N4029
TRANS PNP 80V 1A TO18Manufacturer: Microchip Technology
Categories: Single Bipolar Transistors
Quality Control: Learn More

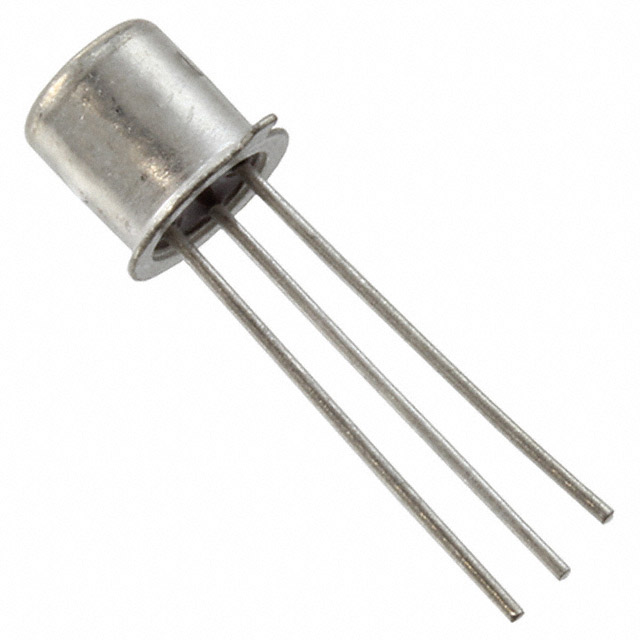

Microchip Technology JANS2N4029 is a PNP bipolar junction transistor (BJT) designed for demanding applications. This military-grade component, qualified to MIL-PRF-19500/512, features a collector-emitter breakdown voltage of 80V and a continuous collector current capability of 1A. With a maximum power dissipation of 500mW, it is packaged in a TO-18 (TO-206AA) metal can for through-hole mounting. The device exhibits a minimum DC current gain (hFE) of 100 at 100mA and 5V, with a saturation voltage (Vce Sat) of 1V at 100mA collector current and 1A base current. It is suitable for operation across a wide temperature range from -55°C to 200°C. This transistor finds utility in aerospace, defense, and high-reliability industrial systems.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: 29 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-206AA, TO-18-3 Metal Can |
| Mounting Type | Through Hole |
| Transistor Type | PNP |
| Operating Temperature | -55°C ~ 200°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 1V @ 100mA, 1A |
| Current - Collector Cutoff (Max) | 10µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 100mA, 5V |
| Frequency - Transition | - |
| Supplier Device Package | TO-18 (TO-206AA) |
| Grade | Military |
| Current - Collector (Ic) (Max) | 1 A |
| Voltage - Collector Emitter Breakdown (Max) | 80 V |
| Power - Max | 500 mW |
| Qualification | MIL-PRF-19500/512 |
