2N6300

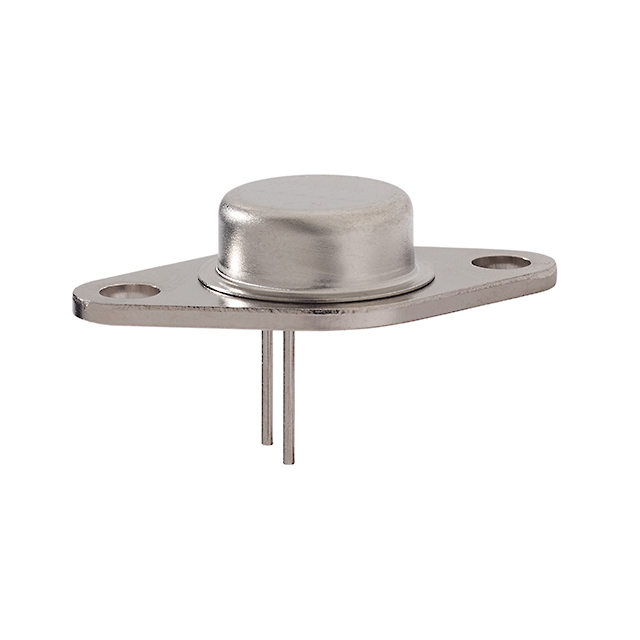

TRANS NPN DARL 60V 8A TO66Manufacturer: Microchip Technology
Categories: Single Bipolar Transistors
Quality Control: Learn More
Microchip Technology's 2N6300 is an NPN Darlington bipolar junction transistor designed for high-current applications. This component features a 60V collector-emitter breakdown voltage and a maximum continuous collector current of 8A, with a power dissipation capability of 75W. The device exhibits a high DC current gain (hFE) of a minimum of 750 at 4A collector current and 3V Vce. Saturation voltage at 8A collector current and 80mA base current is specified at a maximum of 3V. The transistor is housed in a TO-66 (TO-213AA) package for through-hole mounting. Its operating temperature range is -55°C to 200°C. Typical applications include power switching and amplification circuits across industrial and consumer electronics sectors.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 36 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-213AA, TO-66-2 |
| Mounting Type | Through Hole |
| Transistor Type | NPN - Darlington |
| Operating Temperature | -55°C ~ 200°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 3V @ 80mA, 8A |
| Current - Collector Cutoff (Max) | 500µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 750 @ 4A, 3V |
| Frequency - Transition | - |
| Supplier Device Package | TO-66 (TO-213AA) |
| Current - Collector (Ic) (Max) | 8 A |
| Voltage - Collector Emitter Breakdown (Max) | 60 V |
| Power - Max | 75 W |
