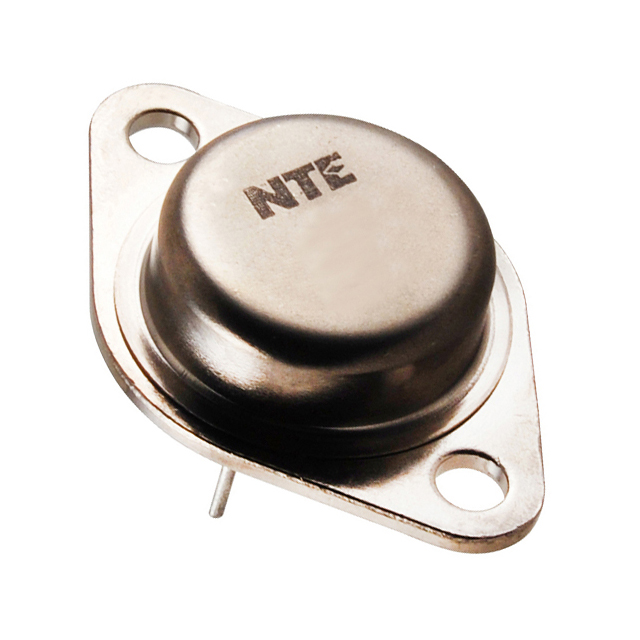

2N6287
TRANS PNP DARL 100V 20A TO204AAManufacturer: Microchip Technology
Categories: Single Bipolar Transistors
Quality Control: Learn More
Bipolar (BJT) Transistor PNP - Darlington 100 V 20 A 175 W Through Hole TO-204AA (TO-3)
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: 36 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-204AA, TO-3 |
| Mounting Type | Through Hole |
| Transistor Type | PNP - Darlington |
| Operating Temperature | -65°C ~ 175°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 3V @ 200mA, 20A |
| Current - Collector Cutoff (Max) | 1mA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 1500 @ 1A, 3V |
| Frequency - Transition | - |
| Supplier Device Package | TO-204AA (TO-3) |
| Current - Collector (Ic) (Max) | 20 A |
| Voltage - Collector Emitter Breakdown (Max) | 100 V |
| Power - Max | 175 W |
