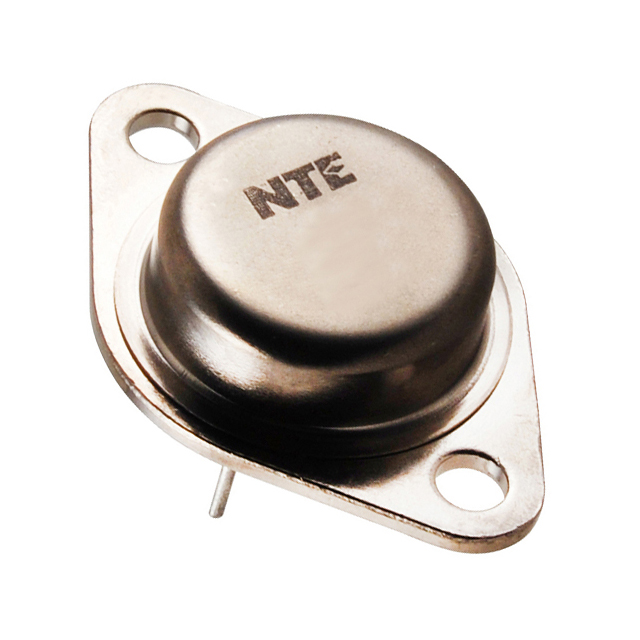

2N5683
NPN TRANSISTORManufacturer: Microchip Technology
Categories: Single Bipolar Transistors
Quality Control: Learn More
Bipolar (BJT) Transistor NPN 60 V 50 A 300 W Through Hole TO-204AA (TO-3)
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 36 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-204AA, TO-3 |
| Mounting Type | Through Hole |
| Transistor Type | NPN |
| Operating Temperature | -65°C ~ 200°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 5V @ 10A, 50A |
| Current - Collector Cutoff (Max) | 5µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 30 @ 5A, 2V |
| Frequency - Transition | - |
| Supplier Device Package | TO-204AA (TO-3) |
| Current - Collector (Ic) (Max) | 50 A |
| Voltage - Collector Emitter Breakdown (Max) | 60 V |
| Power - Max | 300 W |
