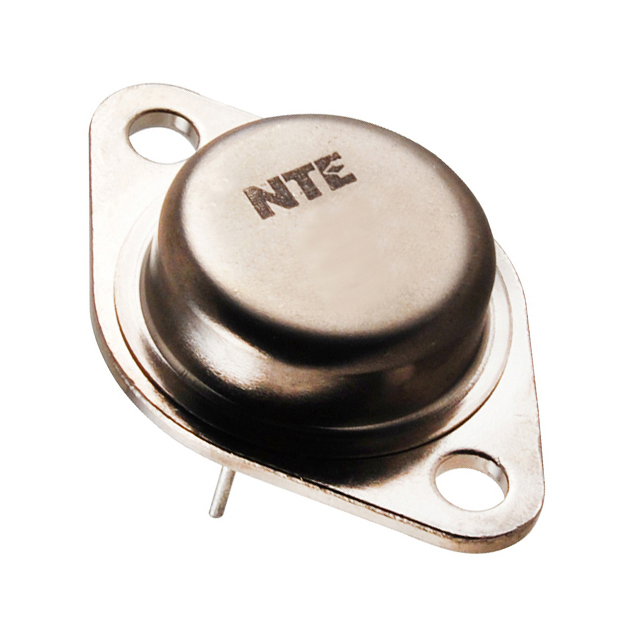

2N5303
NPN TRANSISTORManufacturer: Microchip Technology
Categories: Single Bipolar Transistors
Quality Control: Learn More
Bipolar (BJT) Transistor NPN 80 V 20 A 5 W Through Hole TO-204AD (TO-3)
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: 36 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-204AA, TO-3 |
| Mounting Type | Through Hole |
| Transistor Type | NPN |
| Operating Temperature | -65°C ~ 200°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 2V @ 4A, 20A |
| Current - Collector Cutoff (Max) | 10µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 15 @ 10A, 2V |
| Frequency - Transition | - |
| Supplier Device Package | TO-204AD (TO-3) |
| Current - Collector (Ic) (Max) | 20 A |
| Voltage - Collector Emitter Breakdown (Max) | 80 V |
| Power - Max | 5 W |
