2N2994
POWER BJTManufacturer: Microchip Technology
Categories: Single Bipolar Transistors
Quality Control: Learn More

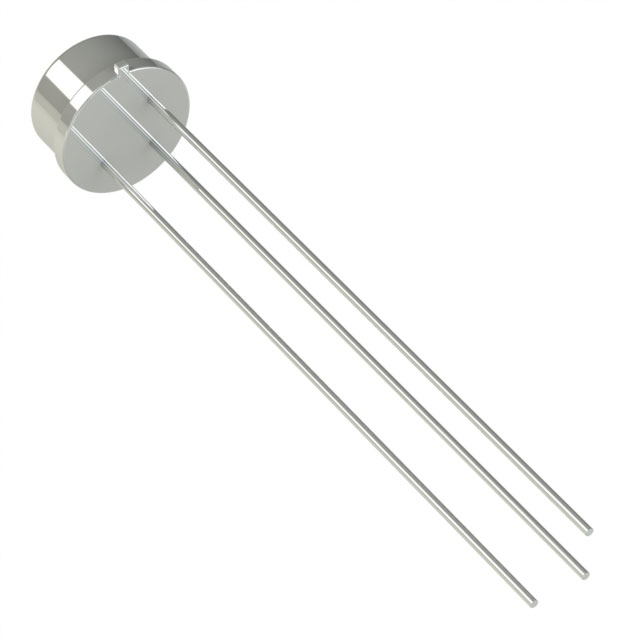

Microchip Technology's 2N2994 is an NPN bipolar junction transistor designed for demanding applications. This through-hole component, housed in a TO-205AA (TO-5AA) metal can package, offers a robust 100 V collector-emitter breakdown voltage and a continuous collector current capability of 1 A. With a maximum power dissipation of 5 W, it is suitable for power switching and amplification circuits across various industrial sectors including aerospace, defense, and industrial control systems. The device operates within a wide temperature range of -65°C to 200°C (TJ).
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: 36 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-205AA, TO-5-3 Metal Can |
| Mounting Type | Through Hole |
| Transistor Type | NPN |
| Operating Temperature | -65°C ~ 200°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 3V @ 50µA, 200µA |
| Current - Collector Cutoff (Max) | - |
| DC Current Gain (hFE) (Min) @ Ic, Vce | - |
| Frequency - Transition | - |
| Supplier Device Package | TO-5AA |
| Current - Collector (Ic) (Max) | 1 A |
| Voltage - Collector Emitter Breakdown (Max) | 100 V |
| Power - Max | 5 W |
Request a Quote
