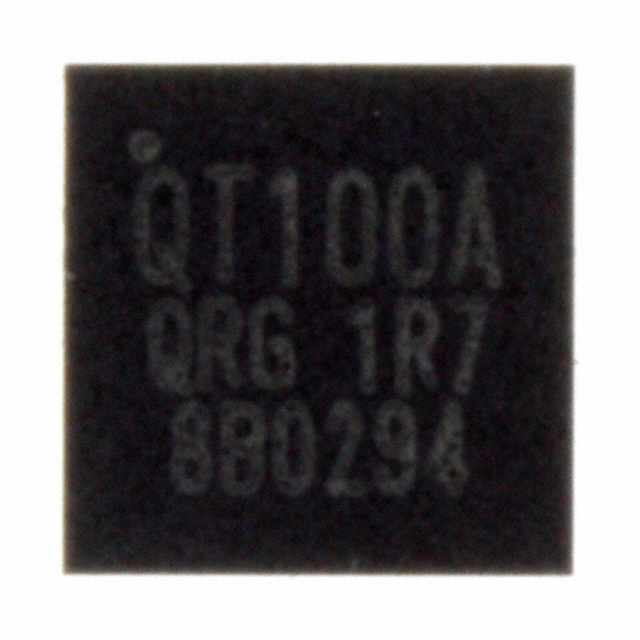

QT100A-ISG
IC SENS TOUCH/PROX 1CHAN 6-WSONManufacturer: Microchip Technology
Categories: Sensor, Capacitive Touch
Quality Control: Learn More
Microchip Technology's QT100A-ISG is a single-channel, capacitive touch and proximity sensor IC from the QTouch™ series. Packaged in a compact 6-WSON (3x3) surface-mount configuration, this component offers robust touch detection capabilities for a variety of applications. It features a 14-bit resolution for accurate sensing and supports proximity detection. Operating within a supply voltage range of 2V to 5.5V, the QT100A-ISG draws a minimal current of 600µA. This device is suitable for industrial automation, consumer electronics, and automotive control systems where reliable and intuitive user interfaces are essential. The component is supplied on tape and reel for high-volume manufacturing.
Additional Information
Series: QTouch™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-WDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Interface | - |
| Type | Buttons |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2V ~ 5.5V |
| Current - Supply | 600µA |
| Number of Inputs | 1 |
| Resolution | 14 b |
| Supplier Device Package | 6-WSON (3x3) |
| Proximity Detection | Yes |
| LED Driver Channels | - |
| Programmable | Not Verified |
