JAN2N2326S
SCR 200V TO39Manufacturer: Microchip Technology
Categories: SCRs
Quality Control: Learn More

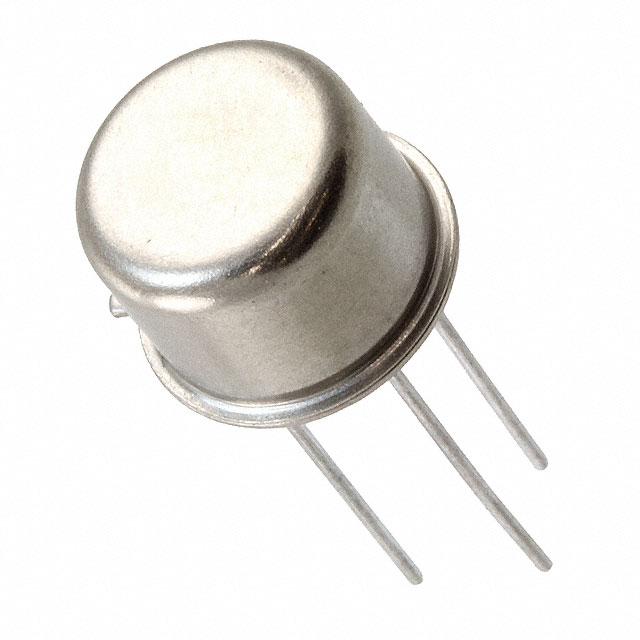

Microchip Technology JAN2N2326S is a sensitive gate Silicon Controlled Rectifier (SCR) rated for 200V off-state voltage. This military-grade component, qualified to MIL-PRF-19500/276, features a maximum gate trigger current (Igt) of 200 µA and a maximum gate trigger voltage (Vgt) of 800 mV. The device offers a maximum on-state current (It(AV)) of 220 mA and a hold current (Ih) of 2 mA. Packaged in a TO-39 (TO-205AD) metal can with a through-hole mounting type, the JAN2N2326S operates within a temperature range of -65°C to 125°C. This SCR is suitable for applications in aerospace, defense, and industrial control systems requiring reliable switching performance.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-205AD, TO-39-3 Metal Can |
| Mounting Type | Through Hole |
| SCR Type | Sensitive Gate |
| Operating Temperature | -65°C ~ 125°C |
| Current - Hold (Ih) (Max) | 2 mA |
| Current - Gate Trigger (Igt) (Max) | 200 µA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | - |
| Current - On State (It (AV)) (Max) | 220 mA |
| Voltage - Gate Trigger (Vgt) (Max) | 800 mV |
| Supplier Device Package | TO-39 (TO-205AD) |
| Grade | Military |
| Voltage - Off State | 200 V |
| Qualification | MIL-PRF-19500/276 |
