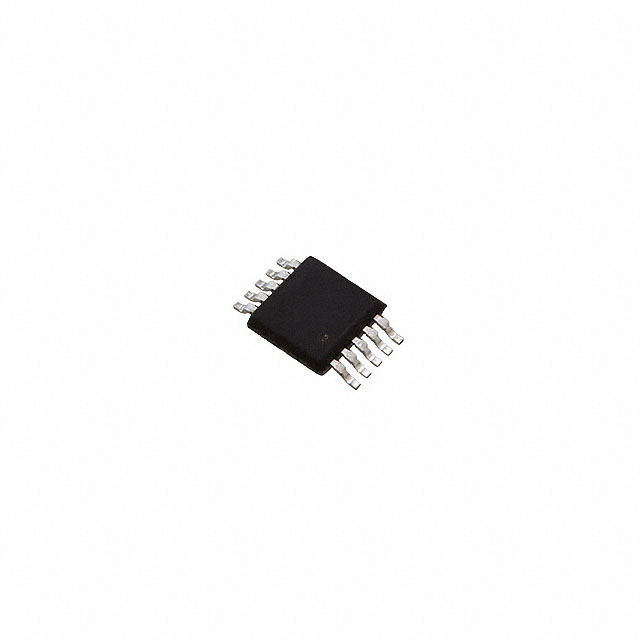

ATA8405-6DQY-66
RF TX IC ASK/FSK 433MHZ 10TFSOPManufacturer: Microchip Technology
Categories: RF Transmitters
Quality Control: Learn More
The Microchip Technology ATA8405-6DQY-66 is a highly efficient RF transmitter IC supporting ASK and FSK modulation at 433MHz. Designed for robust performance, it offers an output power of 6dBm and a maximum data rate of 40kbps. This component is suitable for applications requiring a PCB or surface mount antenna connection. It operates within a supply voltage range of 1.9V to 3.6V and draws a transmitting current of 8.5mA. The ATA8405-6DQY-66 is housed in a compact 10-TFSOP, 10-MSOP (0.118"", 3.00mm Width) package, making it ideal for space-constrained designs. Its operating temperature range is -40°C to 85°C. This device is commonly utilized in Remote Keyless Entry (RKE) and general remote control systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-TFSOP, 10-MSOP (0.118"", 3.00mm Width) |
| Mounting Type | Surface Mount |
| Frequency | 433MHz |
| Memory Size | - |
| Modulation or Protocol | ASK, FSK |
| Data Interface | PCB, Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.9V ~ 3.6V |
| Power - Output | 6dBm |
| Applications | RKE, Remote Control Systems |
| Data Rate (Max) | 40kbps |
| Current - Transmitting | 8.5mA |
| Antenna Connector | PCB, Surface Mount |
| Supplier Device Package | 10-TSSOP |
| Programmable | Not Verified |
