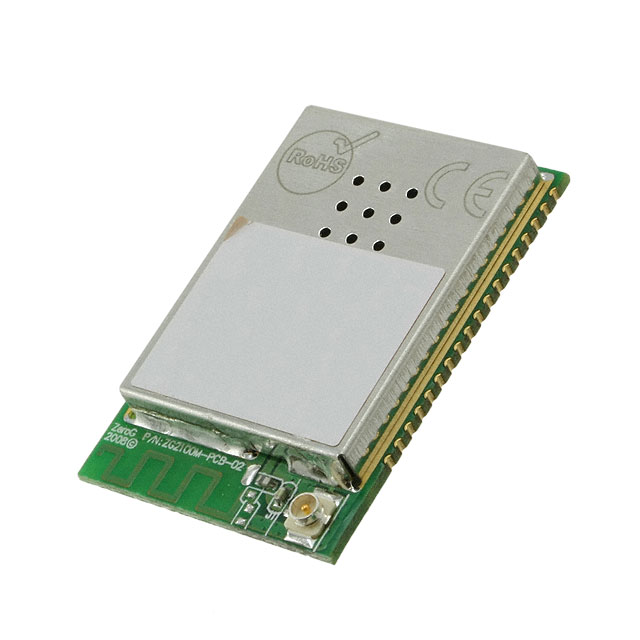

ZG2101MC
RF TXRX MODULE WIFI U.FL SMDManufacturer: Microchip Technology
Categories: RF Transceiver Modules and Modems
Quality Control: Learn More
Microchip Technology's ZG2101MC is a 2.4GHz WiFi 802.11b/g/n transceiver module designed for surface mount applications. This module supports data rates up to 2Mbps and features a U.FL connector for external antenna integration, with the antenna sold separately. Key operational parameters include a transmit power of 10dBm and a receive sensitivity of -91dBm. Power consumption is rated at 154mA during transmission and 85mA during reception, operating from a supply voltage range of 2.7V to 3.6V. The ZG2101MC offers SPI and UART serial interfaces for seamless integration into embedded systems. This component is suitable for use in industrial automation, smart home devices, and IoT applications requiring reliable wireless connectivity. The module is packaged in a 36-DFN format.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bag |
| Package / Case | 36-DFN Module |
| Sensitivity | -91dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz |
| Memory Size | - |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 2.7V ~ 3.6V |
| Power - Output | 10dBm |
| Data Rate | 2Mbps |
| Protocol | 802.11b/g/n |
| Current - Receiving | 85mA |
| Current - Transmitting | 154mA |
| Antenna Type | Antenna Not Included, U.FL |
| Utilized IC / Part | - |
| Modulation | - |
| RF Family/Standard | WiFi |
| Serial Interfaces | SPI, UART |
| Programmable | Not Verified |
