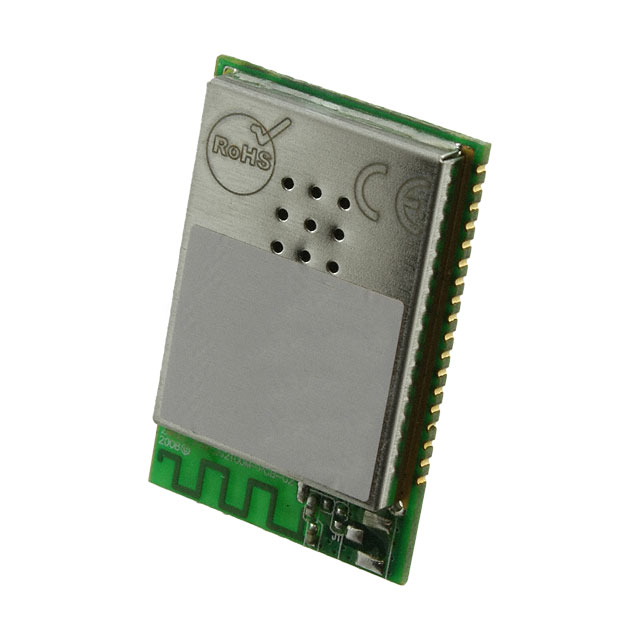

ZG2100MC
RF TXRX MOD WIFI TH SMDManufacturer: Microchip Technology
Categories: RF Transceiver Modules and Modems
Quality Control: Learn More
The Microchip Technology ZG2100MC is a 2.4GHz WiFi 802.11b/g/n transceiver module. This surface mount component features an integrated trace antenna and operates within the 0°C to 70°C temperature range. It supports data rates up to 2Mbps and delivers 10dBm output power, with a receive sensitivity of -91dBm. Power consumption is rated at 85mA for receiving and 154mA for transmitting. Serial interfaces include SPI and UART. This module is suitable for applications in industrial automation, consumer electronics, and IoT devices. The package is a 36-DFN module supplied in a bag.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bag |
| Package / Case | 36-DFN Module |
| Sensitivity | -91dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz |
| Memory Size | - |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 2.7V ~ 3.6V |
| Power - Output | 10dBm |
| Data Rate | 2Mbps |
| Protocol | 802.11b/g/n |
| Current - Receiving | 85mA |
| Current - Transmitting | 154mA |
| Antenna Type | Integrated, Trace |
| Utilized IC / Part | - |
| Modulation | - |
| RF Family/Standard | WiFi |
| Serial Interfaces | SPI, UART |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy
IS1677SM-101
RF TXRX MODULE BLUETOOTH SMD

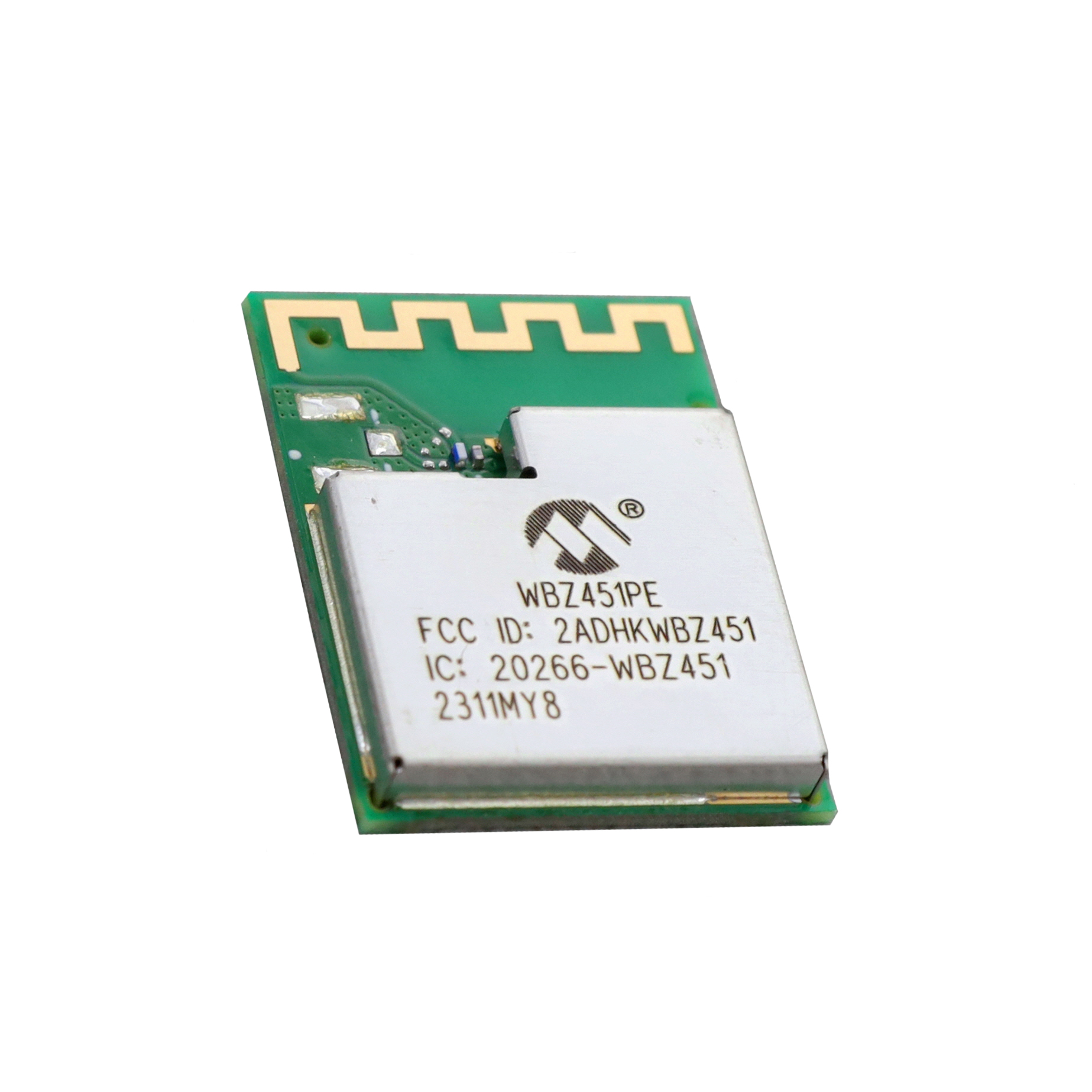

WBZ451PE-I
