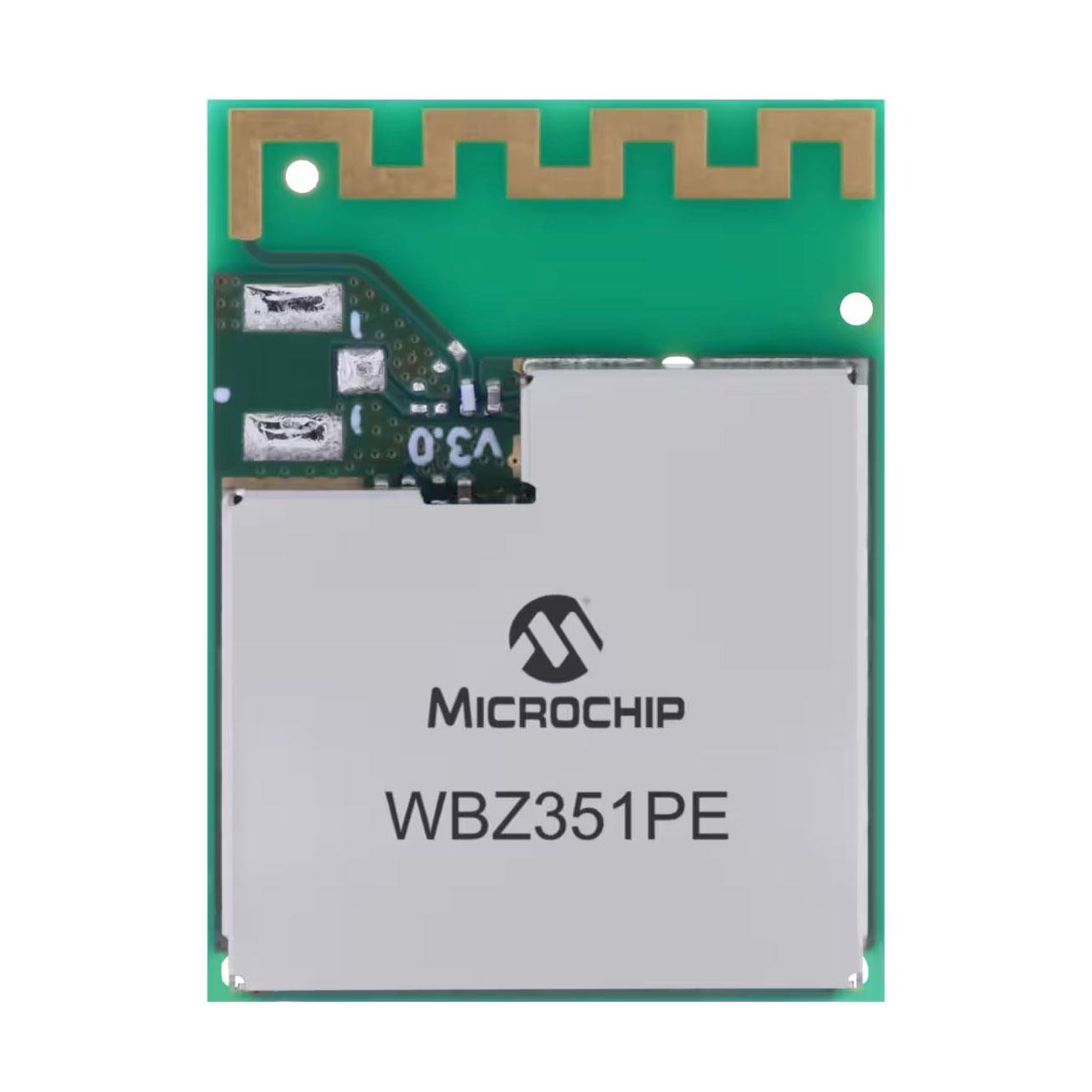

WBZ351PE-I
RF TXRX MOD 802.15.4 BT TH SMDManufacturer: Microchip Technology
Categories: RF Transceiver Modules and Modems
Quality Control: Learn More
802.15.4, Bluetooth Bluetooth v5.2, Zigbee® Transceiver Module 2.4GHz PCB Trace Surface Mount
Additional Information
Series: PIC32CX-BZ3RoHS Status: RoHS CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 39-SMD Module |
| Sensitivity | -108dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz |
| Memory Size | 512kB Flash, 96kB SRAM |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.9V ~ 3.6V |
| Power - Output | 11dBm |
| Data Rate | 2Mbps |
| Protocol | Bluetooth v5.2, Zigbee® |
| Current - Receiving | 16mA ~ 20mA |
| Current - Transmitting | 22mA ~ 49mA |
| Antenna Type | PCB Trace |
| Utilized IC / Part | PIC32CX5109BZ31048 |
| Modulation | GFSK, O-QPSK |
| RF Family/Standard | 802.15.4, Bluetooth |
| Serial Interfaces | ADC, DAC, GPIO, I2C, PWM, QSPI, RS485, SPI, USART |
Request a Quote
Clients Also Buy

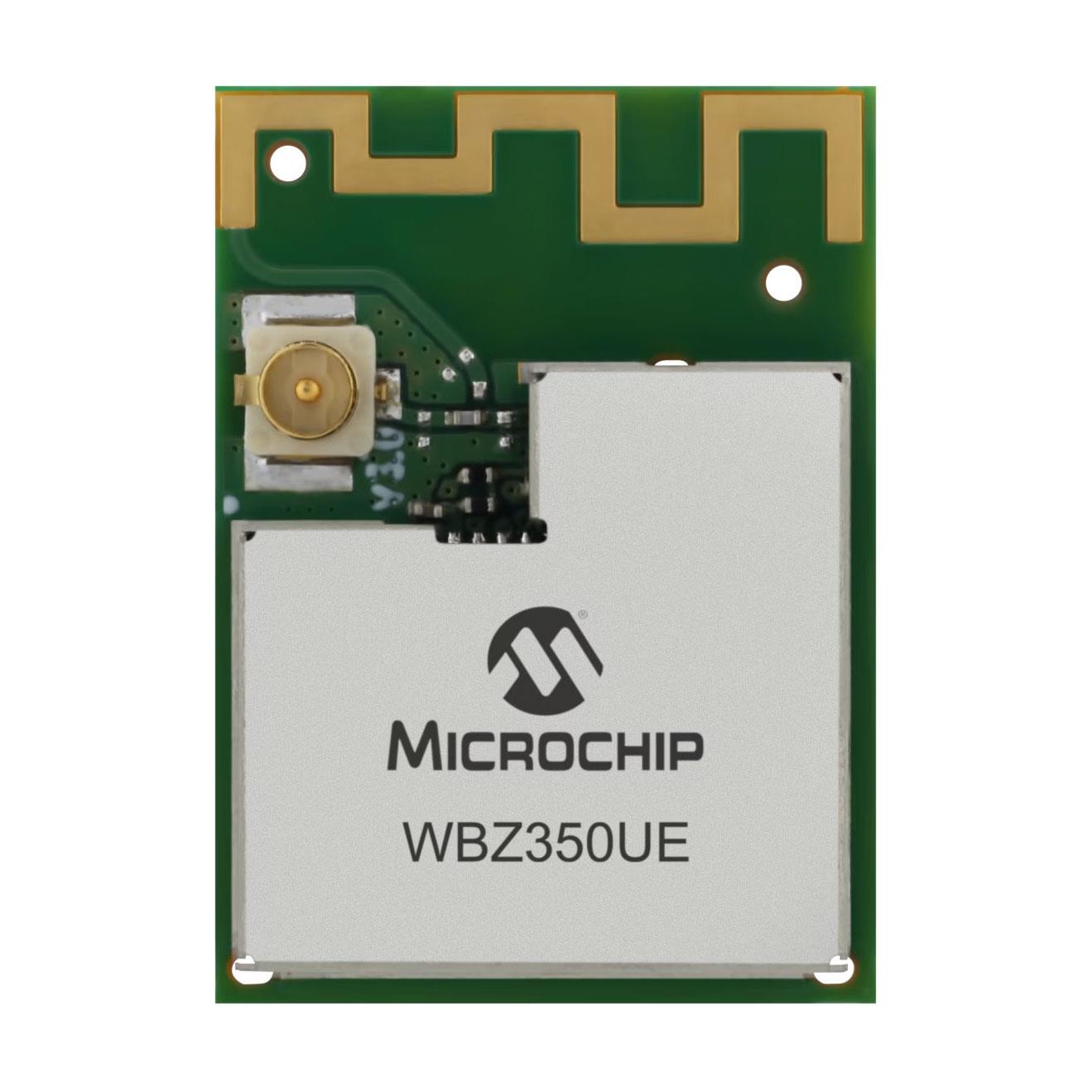

WBZ350UE-I
