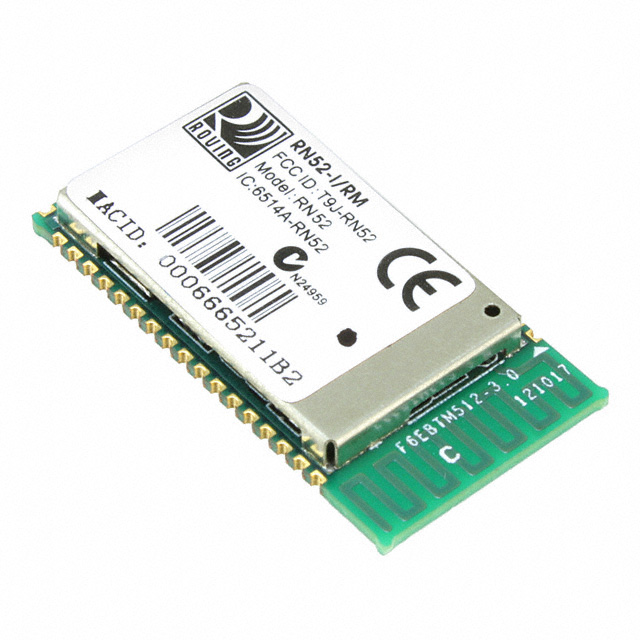

RN52-I/RM
RF TXRX MOD BT TH SMDManufacturer: Microchip Technology
Categories: RF Transceiver Modules and Modems
Quality Control: Learn More
Microchip Technology RN52-I-RM is a Bluetooth v3.0, Class 2 transceiver module for robust wireless connectivity. Operating in the 2.4GHz ISM band, this surface mount module features an integrated trace antenna and supports data rates up to 3Mbps. Modulation schemes include DPSK, DQPSK, and GFSK, with a transmit power of 4dBm and a receive sensitivity of -85dBm. The module integrates 16MB of Flash memory and offers versatile serial interfaces, including AIO, I2S, SPI, UART, and USB, facilitating seamless integration into complex designs. Powering the RN52-I-RM requires a supply voltage range of 3V to 3.6V, with typical current consumption of 30mA for both receive and transmit operations. This component is commonly utilized in consumer electronics, industrial automation, and medical devices.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 50-SMD Module |
| Sensitivity | -85dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz |
| Memory Size | 16MB Flash |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3V ~ 3.6V |
| Power - Output | 4dBm |
| Data Rate | 3Mbps |
| Protocol | Bluetooth v3.0, Class 2 |
| Current - Receiving | 30mA |
| Current - Transmitting | 30mA |
| Antenna Type | Integrated, Trace |
| Utilized IC / Part | - |
| Modulation | DPSK, DQPSK, GFSK |
| RF Family/Standard | Bluetooth |
| Serial Interfaces | AIO, I2S, SPI, UART, USB |
| Programmable | Not Verified |
