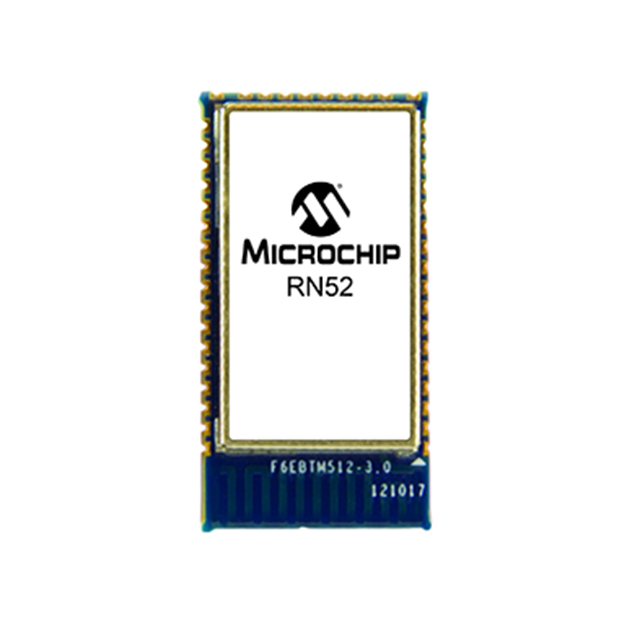

RN52-I/RM116
RF TXRX MOD BT TH SMDManufacturer: Microchip Technology
Categories: RF Transceiver Modules and Modems
Quality Control: Learn More
Microchip Technology RN52-I-RM116 is a Bluetooth v3.0 Class 2 transceiver module supporting a 2.4GHz frequency band. This compact, surface-mount module features an integrated trace antenna and is designed for applications requiring robust wireless connectivity. The RN52-I-RM116 offers a data rate of up to 3Mbps and incorporates 16MB of Flash memory. Key serial interfaces include AIO, I2S, SPI, UART, and USB, facilitating integration into diverse system architectures. Transmit power is rated at 4dBm with a receive sensitivity of -85dBm. Operating current for both transmit and receive modes is 30mA. The module operates within a supply voltage range of 3V to 3.6V and is specified for an operating temperature range of -40°C to 85°C. This component finds application in industrial automation, consumer electronics, and medical devices.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 50-SMD Module |
| Sensitivity | -85dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz |
| Memory Size | 16MB Flash |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3V ~ 3.6V |
| Power - Output | 4dBm |
| Data Rate | 3Mbps |
| Protocol | Bluetooth v3.0, Class 2 |
| Current - Receiving | 30mA |
| Current - Transmitting | 30mA |
| Antenna Type | Integrated, Trace |
| Utilized IC / Part | - |
| Modulation | DPSK, DQPSK, GFSK |
| RF Family/Standard | Bluetooth |
| Serial Interfaces | AIO, I2S, SPI, UART, USB |
| Programmable | Not Verified |
