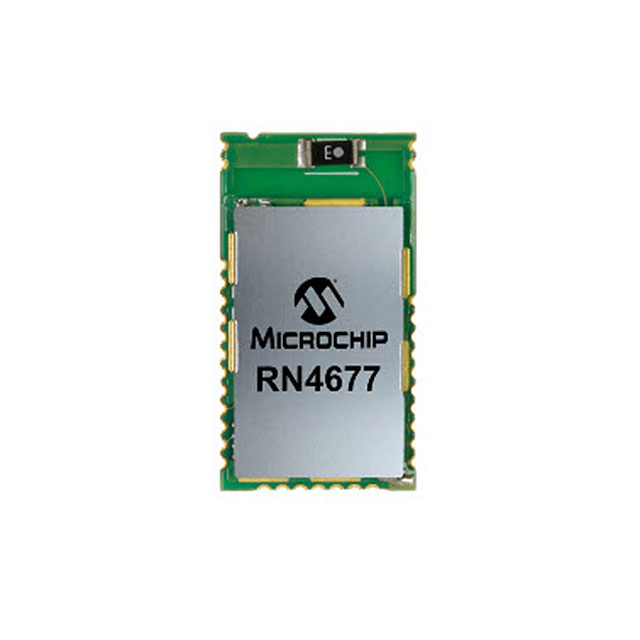

RN4677-V/RM100
RF TXRX MOD BLUETOOTH CHIP SMDManufacturer: Microchip Technology
Categories: RF Transceiver Modules and Modems
Quality Control: Learn More
Microchip Technology RN4677-V-RM100 is a Bluetooth v4.0 Dual Mode transceiver module designed for surface mount applications. This 2.4GHz RF module features an integrated chip antenna and operates within a supply voltage range of 3.2V to 4.3V. With a transmit output power of 2dBm and a receive sensitivity of -92dBm, it offers robust wireless communication capabilities. The module supports UART serial interfaces for seamless integration into embedded systems. Typical current consumption during both receiving and transmitting is 70mA. This component is suitable for a range of industrial, automotive, and consumer electronics applications requiring reliable Bluetooth connectivity. The RN4677-V-RM100 is supplied in a Tray package.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 33-SMD Module |
| Sensitivity | -92dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz |
| Memory Size | - |
| Operating Temperature | -20°C ~ 70°C |
| Voltage - Supply | 3.2V ~ 4.3V |
| Power - Output | 2dBm |
| Data Rate | - |
| Protocol | Bluetooth v4.0 Dual Mode |
| Current - Receiving | 70mA |
| Current - Transmitting | 70mA |
| Antenna Type | Integrated, Chip |
| Utilized IC / Part | - |
| Modulation | - |
| RF Family/Standard | Bluetooth |
| Serial Interfaces | UART |
| Programmable | Not Verified |
