RN42XVU-I/RM
RF TXRX MOD BTU.FL THROUGH HOLEManufacturer: Microchip Technology
Categories: RF Transceiver Modules and Modems
Quality Control: Learn More

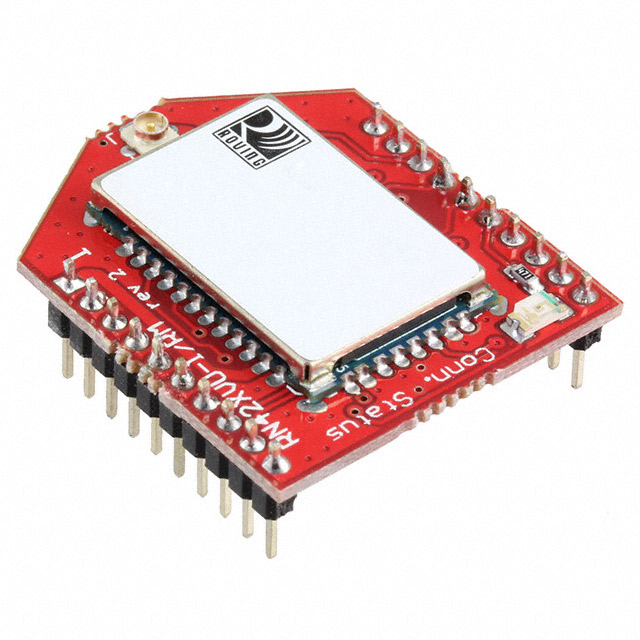

Microchip Technology RN42XVU-I-RM is a Bluetooth v2.1 +EDR, Class 2 transceiver module supporting FHSS and GFSK modulation. Operating in the 2.4GHz ISM band, this module provides a data rate of 300kbps with a transmit power of 4dBm and a receive sensitivity of -80dBm. It features a U.FL connector for external antenna integration and utilizes a UART serial interface for communication. The RN42XVU-I-RM is designed for through-hole mounting and operates within a temperature range of -40°C to 85°C, powered by a voltage supply of 3V to 3.6V. This component is commonly found in industrial automation, medical devices, and consumer electronics applications. It is supplied in a 20-DIP module package.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bag |
| Package / Case | 20-DIP Module |
| Sensitivity | -80dBm |
| Mounting Type | Through Hole |
| Frequency | 2.4GHz |
| Memory Size | - |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3V ~ 3.6V |
| Power - Output | 4dBm |
| Data Rate | 300kbps |
| Protocol | Bluetooth v2.1 +EDR, Class 2 |
| Current - Receiving | - |
| Current - Transmitting | - |
| Antenna Type | Antenna Not Included, U.FL |
| Utilized IC / Part | - |
| Modulation | FHSS, GFSK |
| RF Family/Standard | Bluetooth |
| Serial Interfaces | UART |
| Programmable | Not Verified |
