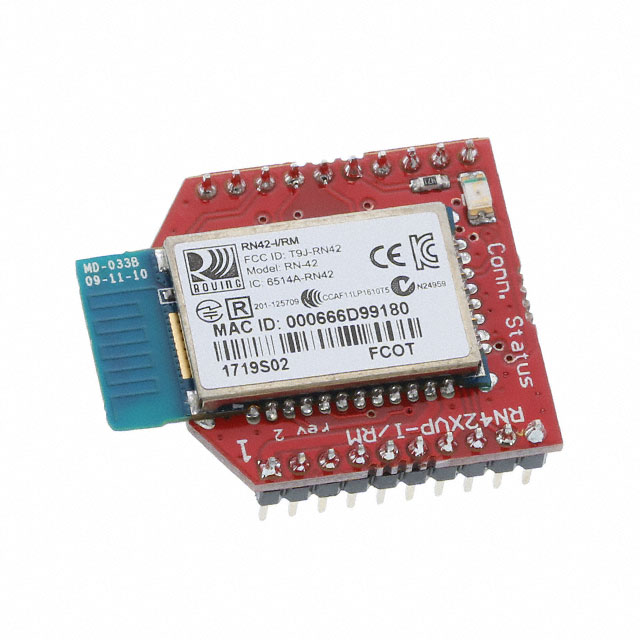

RN42XVP-I/RM
RF TXRX MOD BT TRACE THManufacturer: Microchip Technology
Categories: RF Transceiver Modules and Modems
Quality Control: Learn More
The Microchip Technology RN42XVP-I-RM is a Class 2 Bluetooth v2.1 +EDR transceiver module operating in the 2.4GHz ISM band. This compact, through-hole mounted module features an integrated trace antenna and supports FHSS and GFSK modulation. Designed for robust wireless connectivity, it offers a transmit power of 4dBm and a receive sensitivity of -86dBm. Key electrical specifications include a receiving current of 35mA and a transmitting current of 65mA. Data communication is facilitated via a UART serial interface, with a data rate of 300kbps. The module operates within a supply voltage range of 3V to 3.6V and is specified for an industrial operating temperature range of -40°C to 85°C. The RN42XVP-I-RM is suitable for applications across industrial automation, medical devices, and consumer electronics requiring reliable short-range wireless communication.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bag |
| Package / Case | 20-DIP Module |
| Sensitivity | -86dBm |
| Mounting Type | Through Hole |
| Frequency | 2.4GHz |
| Memory Size | - |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3V ~ 3.6V |
| Power - Output | 4dBm |
| Data Rate | 300kbps |
| Protocol | Bluetooth v2.1 +EDR, Class 2 |
| Current - Receiving | 35mA |
| Current - Transmitting | 65mA |
| Antenna Type | Integrated, Trace |
| Utilized IC / Part | - |
| Modulation | FHSS, GFSK |
| RF Family/Standard | Bluetooth |
| Serial Interfaces | UART |
| Programmable | Not Verified |
