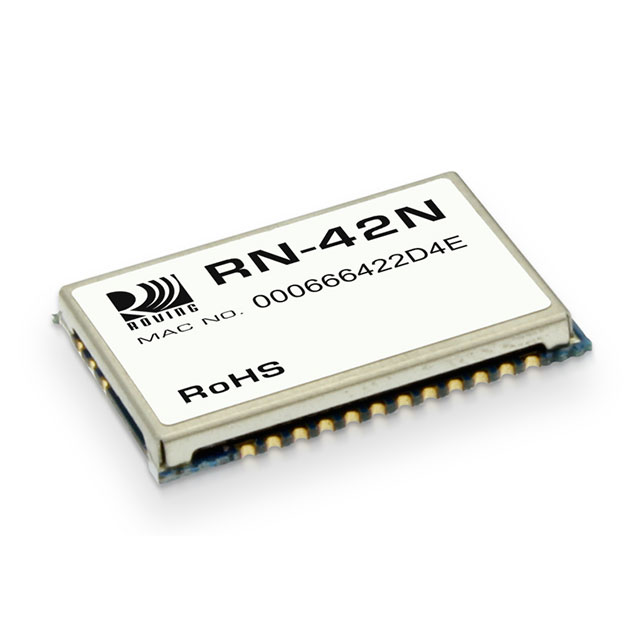

RN42NU-I/RM
RF TXRX MOD BLUETOOTHU.FL SMDManufacturer: Microchip Technology
Categories: RF Transceiver Modules and Modems
Quality Control: Learn More
Microchip Technology RN42NU-I-RM is a compact Bluetooth v2.1 +EDR, Class 2 transceiver module designed for seamless wireless connectivity. Operating in the 2.4GHz ISM band, this surface mount module utilizes a U.FL connector for antenna integration, offering flexibility in system design. It supports a data rate of up to 3Mbps and provides a transmit power of 4dBm with a receive sensitivity of -80dBm. The RN42NU-I-RM features a USB serial interface for communication and operates within a voltage range of 3V to 3.6V, consuming 30mA during transmission. This component is commonly found in industrial automation, consumer electronics, and medical device applications requiring reliable wireless communication. It is supplied in tray packaging for efficient handling.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Sensitivity | -80dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz |
| Memory Size | - |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3V ~ 3.6V |
| Power - Output | 4dBm |
| Data Rate | 3Mbps |
| Protocol | Bluetooth v2.1 +EDR, Class 2 |
| Current - Receiving | - |
| Current - Transmitting | 30mA |
| Antenna Type | Antenna Not Included, U.FL |
| Utilized IC / Part | - |
| Modulation | - |
| RF Family/Standard | Bluetooth |
| Serial Interfaces | USB |
| Programmable | Not Verified |
