RN42-I/RM
RF TXRX MOD BT TH SMDManufacturer: Microchip Technology
Categories: RF Transceiver Modules and Modems
Quality Control: Learn More

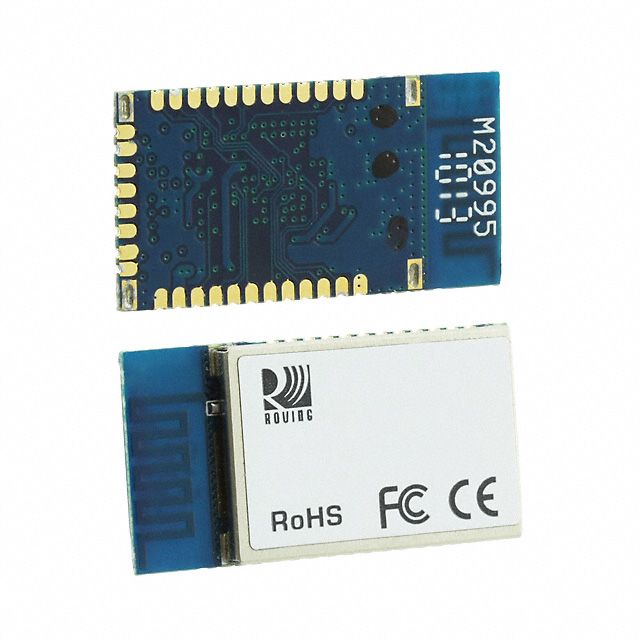

The Microchip Technology RN42-I-RM is a compact, Class 2 Bluetooth v2.1 +EDR transceiver module designed for surface-mount applications. Operating in the 2.4GHz ISM band, this module features an integrated trace antenna and supports a data rate of 300kbps. Its robust design ensures reliable performance across an operating temperature range of -40°C to 85°C. The RN42-I-RM offers a transmit power of 4dBm and a receive sensitivity of -80dBm, facilitating efficient wireless communication. Power consumption is rated at 30mA during transmission, with a supply voltage range of 3V to 3.6V. Key serial interfaces include UART, enabling straightforward integration into various embedded systems. This module finds extensive use in industrial automation, consumer electronics, and medical devices requiring secure and efficient wireless connectivity. The product is supplied in a Tray package.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 35-SMD Module |
| Sensitivity | -80dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz |
| Memory Size | - |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3V ~ 3.6V |
| Power - Output | 4dBm |
| Data Rate | 300kbps |
| Protocol | Bluetooth v2.1 +EDR, Class 2 |
| Current - Receiving | - |
| Current - Transmitting | 30mA |
| Antenna Type | Integrated, Trace |
| Utilized IC / Part | - |
| Modulation | - |
| RF Family/Standard | Bluetooth |
| Serial Interfaces | UART |
| Programmable | Not Verified |
