RN41U-I/RM
RF TXRX MOD BLUETOOTH CHIP SMDManufacturer: Microchip Technology
Categories: RF Transceiver Modules and Modems
Quality Control: Learn More

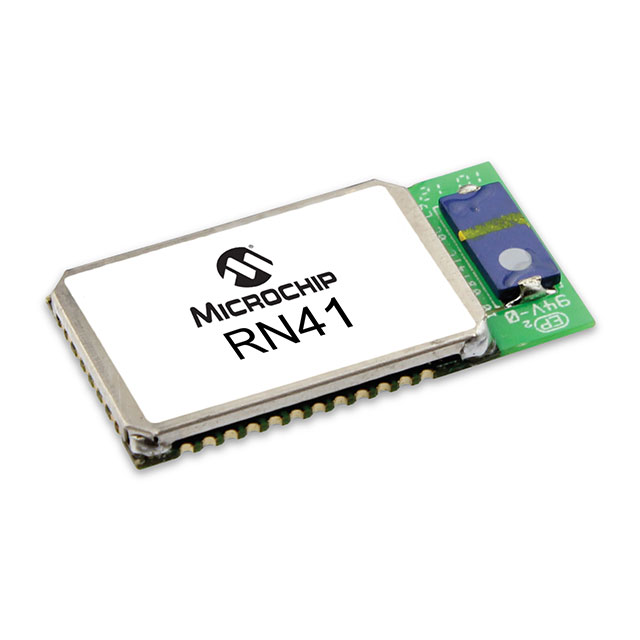

The Microchip Technology RN41U-I-RM is a Class 1 Bluetooth v2.1 +EDR transceiver module operating in the 2.4GHz ISM band. This surface mount module features an integrated chip antenna and supports FHSS and GFSK modulation for robust wireless communication. With a transmission power of 16dBm and a receiving sensitivity of -80dBm, it delivers reliable performance for demanding applications. The RN41U-I-RM offers multiple serial interfaces including SPI, UART, and USB for flexible system integration. Typical current consumption is 35mA during reception and 65mA during transmission. This module is suitable for a wide range of industrial, medical, and consumer electronics applications where secure and efficient short-range wireless connectivity is required. It operates over an extended temperature range of -40°C to 85°C, packaged in a 35-SMD module.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bag |
| Package / Case | 35-SMD Module |
| Sensitivity | -80dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz |
| Memory Size | - |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3V ~ 3.6V |
| Power - Output | 16dBm |
| Data Rate | 3Mbps |
| Protocol | Bluetooth v2.1 +EDR, Class 1 |
| Current - Receiving | 35mA |
| Current - Transmitting | 65mA |
| Antenna Type | Integrated, Chip |
| Utilized IC / Part | - |
| Modulation | FHSS, GFSK |
| RF Family/Standard | Bluetooth |
| Serial Interfaces | SPI, UART, USB |
| Programmable | Not Verified |
