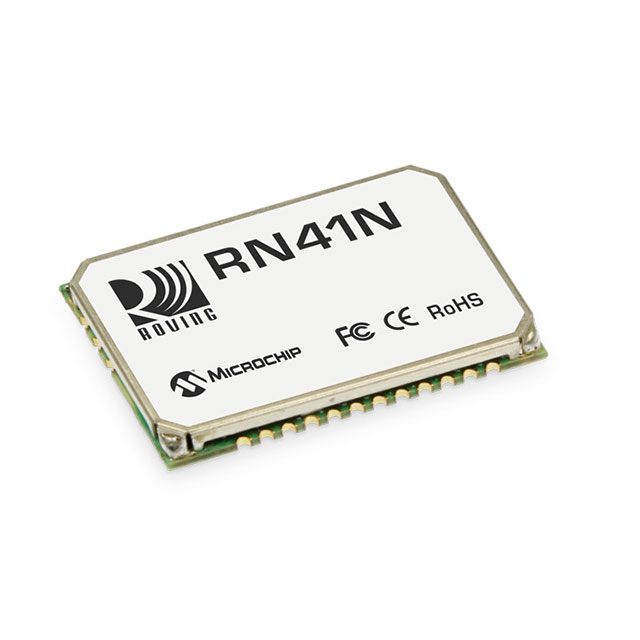

RN41N-I/RM
RF TXRX MODULE BLUETOOTH SMDManufacturer: Microchip Technology
Categories: RF Transceiver Modules and Modems
Quality Control: Learn More
Microchip Technology RN41N-I-RM is a Bluetooth v2.1 +EDR, Class 1 Transceiver Module operating in the 2.4GHz band. This surface mount device utilizes FHSS and GFSK modulation for reliable wireless communication. The module supports serial interfaces including SPI, UART, and USB, offering flexible integration into embedded systems. Designed for demanding applications, it features a transmit power of 16dBm and a receive sensitivity of -80dBm. Typical current consumption is 65mA during transmission and 35mA during reception. The RN41N-I-RM is suitable for industrial, medical, and consumer electronics sectors requiring robust Bluetooth connectivity. It is supplied in Tray packaging and requires an external antenna. The operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 35-SMD Module |
| Sensitivity | -80dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz |
| Memory Size | - |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3V ~ 3.6V |
| Power - Output | 16dBm |
| Data Rate | 300kbps |
| Protocol | Bluetooth v2.1 +EDR, Class 1 |
| Current - Receiving | 35mA |
| Current - Transmitting | 65mA |
| Antenna Type | Antenna Not Included |
| Utilized IC / Part | - |
| Modulation | FHSS, GFSK |
| RF Family/Standard | Bluetooth |
| Serial Interfaces | SPI, UART, USB |
| Programmable | Not Verified |
