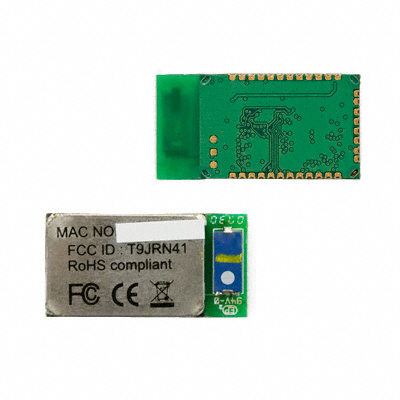

RN41-I/RM
RF TXRX MOD BLUETOOTH CHIP SMDManufacturer: Microchip Technology
Categories: RF Transceiver Modules and Modems
Quality Control: Learn More
Microchip Technology's RN41-I-RM is a compact Class 1 Bluetooth v2.1 +EDR transceiver module designed for surface mount applications. Operating in the 2.4GHz band, this module utilizes FHSS and GFSK modulation for robust wireless communication. It features an integrated chip antenna, simplifying board layout and reducing external component count. The RN41-I-RM offers a transmission output power of 16dBm and a receiving sensitivity of -80dBm, with data rates up to 300kbps. Power consumption is rated at 35mA during reception and 65mA during transmission, operating from a 3V to 3.6V supply. Supported serial interfaces include SPI, UART, and USB, facilitating seamless integration into various embedded systems. This module is commonly employed in industrial automation, medical devices, and consumer electronics requiring reliable wireless connectivity. It is supplied in Tray packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 35-SMD Module |
| Sensitivity | -80dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz |
| Memory Size | - |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3V ~ 3.6V |
| Power - Output | 16dBm |
| Data Rate | 300kbps |
| Protocol | Bluetooth v2.1 +EDR, Class 1 |
| Current - Receiving | 35mA |
| Current - Transmitting | 65mA |
| Antenna Type | Integrated, Chip |
| Utilized IC / Part | - |
| Modulation | FHSS, GFSK |
| RF Family/Standard | Bluetooth |
| Serial Interfaces | SPI, UART, USB |
| Programmable | Not Verified |
