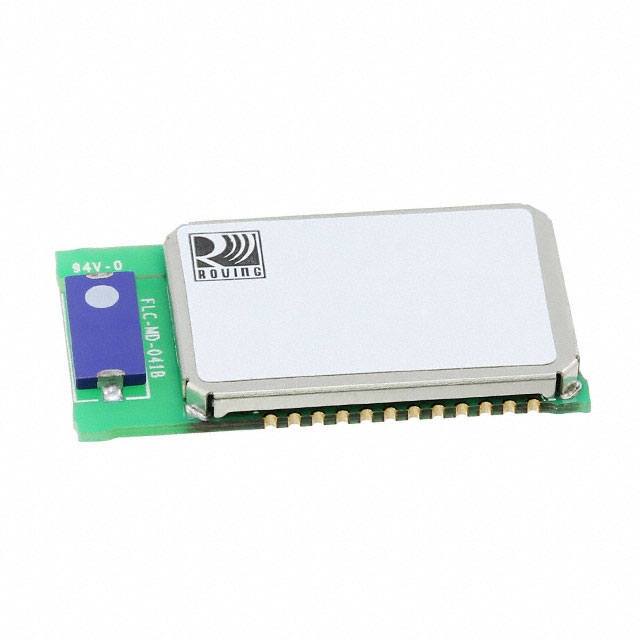

RN41-I/RM630
RF TXRX MOD BLUETOOTH CHIP SMDManufacturer: Microchip Technology
Categories: RF Transceiver Modules and Modems
Quality Control: Learn More
Microchip Technology RN41-I-RM630 is a 2.4GHz Bluetooth v2.1 +EDR transceiver module in a surface mount package. This module features an integrated chip antenna and supports data rates up to 3Mbps. Key electrical specifications include transmit power of 18dBm, receive sensitivity of -86dBm, and typical operating currents of 65mA for transmission and 35mA for reception. The RN41-I-RM630 operates with a supply voltage range of 3V to 3.6V and is suitable for industrial applications. Serial interfaces provided are SPI, UART, and USB, enabling flexible integration into embedded systems. The operating temperature range is -40°C to 85°C, and the component is supplied in trays. This module is commonly deployed in industrial automation, medical devices, and consumer electronics requiring robust wireless connectivity.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Sensitivity | -86dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz |
| Memory Size | - |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3V ~ 3.6V |
| Power - Output | 18dBm |
| Data Rate | 3Mbps |
| Protocol | Bluetooth v2.1 +EDR |
| Current - Receiving | 35mA |
| Current - Transmitting | 65mA |
| Antenna Type | Integrated, Chip |
| Utilized IC / Part | - |
| Modulation | - |
| RF Family/Standard | Bluetooth |
| Serial Interfaces | SPI, UART, USB |
| Programmable | Not Verified |
