RN2483A-I/RM105
RF TXRX MOD ISM<1GHZ CAST SMDManufacturer: Microchip Technology
Categories: RF Transceiver Modules and Modems
Quality Control: Learn More

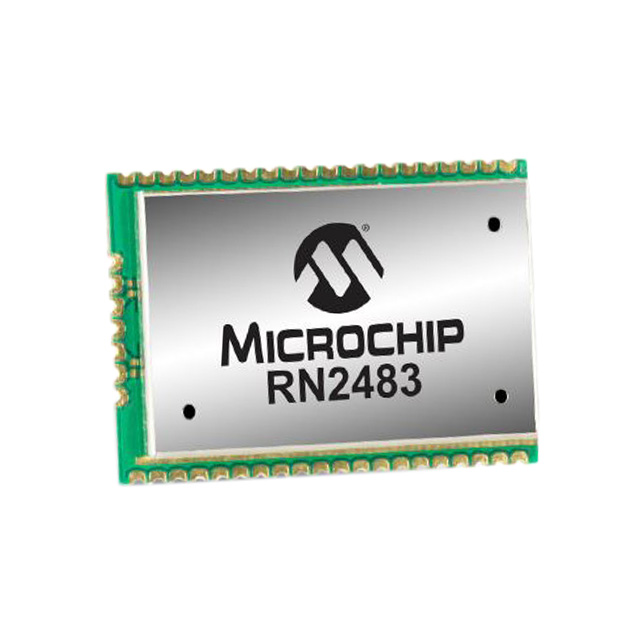

The Microchip Technology RN2483A-I-RM105 is a LoRa™ transceiver module designed for the General ISM < 1GHz band. This surface mount component operates across two frequency bands: 433.05MHz to 434.79MHz and 863MHz to 870MHz. It supports FSK and GFSK modulation and offers a data rate of up to 300kbps. The module features a sensitivity of -146dBm and a configurable output power up to 14dBm. Power consumption during receive is not specified, but transmit current ranges from 14.1mA to 39mA. This module is equipped with I2C, SPI, and UART serial interfaces. It operates within an industrial temperature range of -40°C to 85°C and requires a supply voltage between 2.1V and 3.6V. The RN2483A-I-RM105 is supplied in a castellation surface mount package with the antenna not included, suitable for applications in industrial IoT, smart agriculture, and asset tracking.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Sensitivity | -146dBm |
| Mounting Type | Surface Mount |
| Frequency | 433.05MHz ~ 434.79MHz, 863MHz ~ 870MHz |
| Memory Size | - |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.1V ~ 3.6V |
| Power - Output | 14dBm |
| Data Rate | 300kbps |
| Protocol | LoRa™ |
| Current - Receiving | - |
| Current - Transmitting | 14.1mA ~ 39mA |
| Antenna Type | Antenna Not Included, Castellation |
| Utilized IC / Part | - |
| Modulation | FSK, GFSK |
| RF Family/Standard | General ISM < 1GHz |
| Serial Interfaces | I2C, SPI, UART |
| Programmable | Not Verified |
