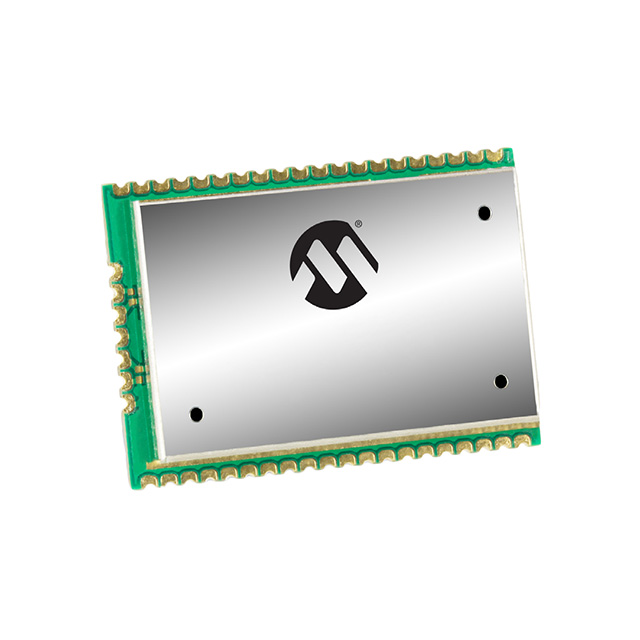

RN2483-I/RM101
RF TXRX MOD ISM<1GHZSMDManufacturer: Microchip Technology
Categories: RF Transceiver Modules and Modems
Quality Control: Learn More
Microchip Technology RN2483-I-RM101 is a general ISM < 1GHz LoRa™ transceiver module. This surface mount device supports operation at 433MHz and 868MHz frequencies with a programmable output power up to 14dBm. The module offers a data rate of up to 300kbps and a receiver sensitivity of -146dBm. It features multiple serial interfaces including I2C, SPI, and UART for flexible integration. Operating voltage ranges from 2.1V to 3.6V, with typical receiving current at 14.3mA and transmitting current at 39mA. The RN2483-I-RM101 is suitable for applications in industrial automation, smart agriculture, and smart city infrastructure. This component is supplied in a tray.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Sensitivity | -146dBm |
| Mounting Type | Surface Mount |
| Frequency | 433MHz, 868MHz |
| Memory Size | - |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.1V ~ 3.6V |
| Power - Output | 14dBm |
| Data Rate | 300kbps |
| Protocol | LoRa™ |
| Current - Receiving | 14.3mA |
| Current - Transmitting | 39mA |
| Antenna Type | Antenna Not Included |
| Utilized IC / Part | - |
| Modulation | - |
| RF Family/Standard | General ISM < 1GHz |
| Serial Interfaces | I2C, SPI, UART |
| Programmable | Not Verified |
