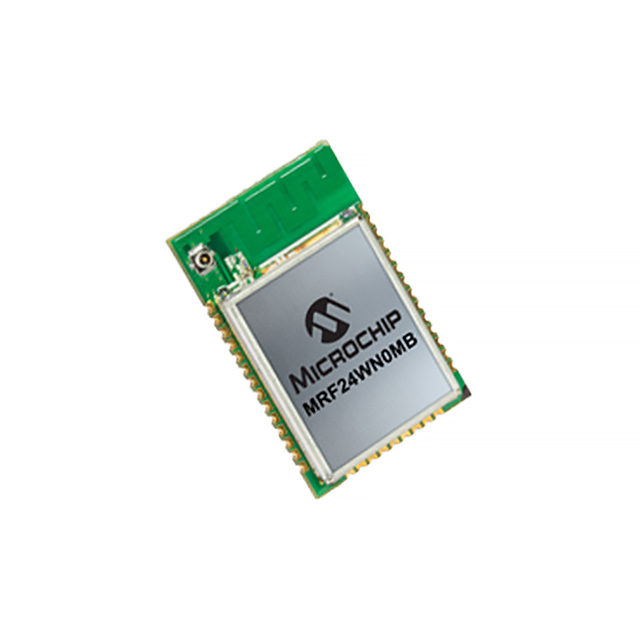

MRF24WN0MB-I/RM100
RF TXRX MODULE WIFIW.FL SMDManufacturer: Microchip Technology
Categories: RF Transceiver Modules and Modems
Quality Control: Learn More
The Microchip Technology MRF24WN0MB-I-RM100 is a 2.4GHz RF transceiver module supporting 802.11b/g/n protocols. This surface mount component features a W.FL connector for antenna integration, offering flexibility in antenna selection. It operates across a temperature range of -40°C to 85°C with a supply voltage of 3.15V to 3.45V. Key performance metrics include a transmit power of up to 20.7dBm and a receive sensitivity of -95.7dBm. Data rates up to 54Mbps are achievable with modulation schemes including BPSK, CCK, DSSS, QAM, and QPSK. The module utilizes SPI for serial communication. Typical current consumption is 61mA to 73mA during receiving and 196mA to 248mA during transmitting. This module is suitable for applications in industrial automation, smart home devices, and wireless sensor networks.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 37-SMD Module |
| Sensitivity | -95.7dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz |
| Memory Size | - |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3.15V ~ 3.45V |
| Power - Output | 20.7dBm |
| Data Rate | 54Mbps |
| Protocol | 802.11b/g/n |
| Current - Receiving | 61mA ~ 73mA |
| Current - Transmitting | 196mA ~ 248mA |
| Antenna Type | Antenna Not Included, W.FL |
| Utilized IC / Part | - |
| Modulation | BPSK, CCK, DSSS, QAM, QPSK |
| RF Family/Standard | WiFi |
| Serial Interfaces | SPI |
| Programmable | Not Verified |
