MRF24WG0MA-I/RM10C
RF TXRX MOD WIFI TH SMDManufacturer: Microchip Technology
Categories: RF Transceiver Modules and Modems
Quality Control: Learn More
Microchip Technology MRF24WG0MA-I-RM10C is a 2.4GHz WiFi 802.11b/g transceiver module featuring an integrated trace antenna. This surface mount device supports DSSS and OFDM modulation, achieving data rates up to 54Mbps. It operates within the 2.4GHz frequency band and offers a transmit power of 18dBm, with receiving current draw at 156mA and transmitting current between 226mA and 237mA. The module boasts a sensitivity of -95dBm and connects via SPI serial interfaces. Designed for robust operation, it functions across an industrial temperature range of -40°C to 85°C. This module is suitable for various applications in industrial automation, consumer electronics, and smart home devices. It is supplied in a 36-SMD Module package.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 36-SMD Module |
| Sensitivity | -95dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz |
| Memory Size | - |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.8V ~ 3.6V |
| Power - Output | 18dBm |
| Data Rate | 54Mbps |
| Protocol | 802.11b/g |
| Current - Receiving | 156mA |
| Current - Transmitting | 226mA ~ 237mA |
| Antenna Type | Integrated, Trace |
| Utilized IC / Part | - |
| Modulation | DSSS, OFDM |
| RF Family/Standard | WiFi |
| Serial Interfaces | SPI |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

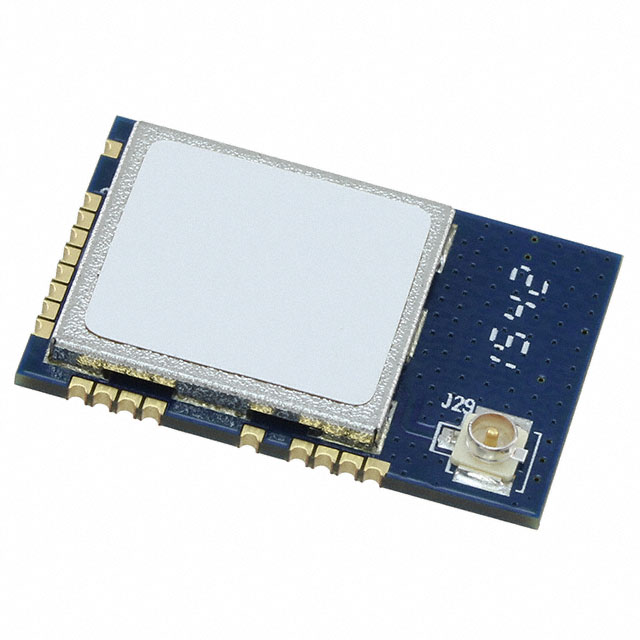

ATWINC1510-MR210UB1976
