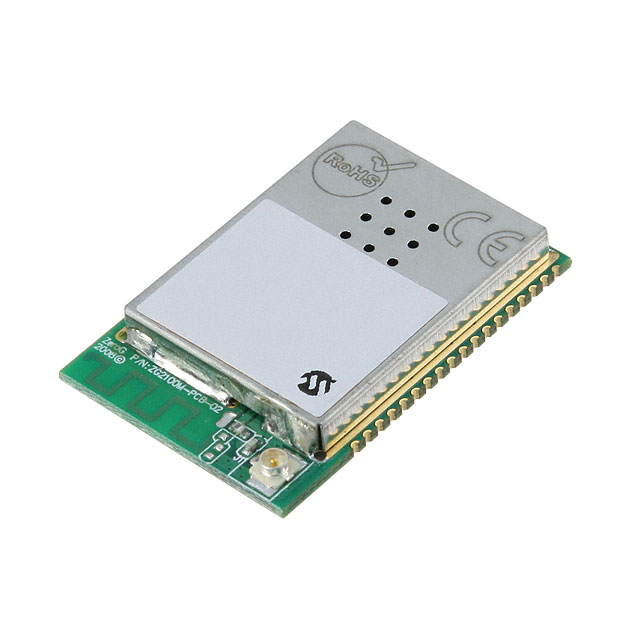

MRF24WB0MB/RM
RF TXRX MODULE WIFI U.FL SMDManufacturer: Microchip Technology
Categories: RF Transceiver Modules and Modems
Quality Control: Learn More
Microchip Technology MRF24WB0MB-RM is a 2.4GHz 802.11b WiFi transceiver module designed for robust wireless connectivity. This surface mount module features a U.FL connector for external antenna integration, providing flexibility in system design. Supporting DSSS modulation, it achieves data rates up to 2Mbps and offers a transmit power of 10dBm with a receive sensitivity of -91dBm. Operating across a wide temperature range of -40°C to 85°C, the MRF24WB0MB-RM consumes 85mA during reception and between 115mA and 154mA during transmission, with a supply voltage range of 2.7V to 3.6V. Integrated JTAG and SPI serial interfaces facilitate efficient communication and control. This component is suitable for applications in industrial automation, IoT devices, and consumer electronics demanding reliable wireless networking.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Sensitivity | -91dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz |
| Memory Size | - |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.7V ~ 3.6V |
| Power - Output | 10dBm |
| Data Rate | 2Mbps |
| Protocol | 802.11b |
| Current - Receiving | 85mA |
| Current - Transmitting | 115mA ~ 154mA |
| Antenna Type | Antenna Not Included, U.FL |
| Utilized IC / Part | - |
| Modulation | DSSS |
| RF Family/Standard | WiFi |
| Serial Interfaces | JTAG, SPI |
| Programmable | Not Verified |
