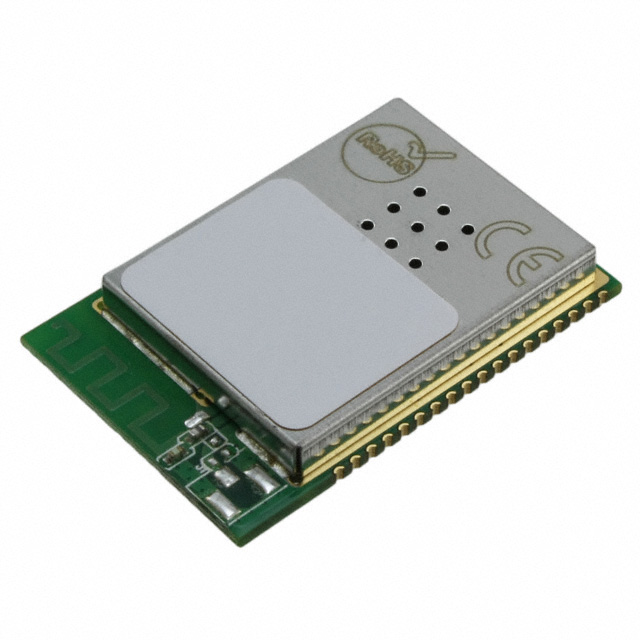

MRF24WB0MA/RM
RF TXRX MOD WIFI TH SMDManufacturer: Microchip Technology
Categories: RF Transceiver Modules and Modems
Quality Control: Learn More
Microchip Technology's MRF24WB0MA-RM is a compact 802.11b WiFi transceiver module operating in the 2.4GHz band. This surface mount component features an integrated trace antenna and supports DSSS modulation for data rates up to 2Mbps. Designed for robust performance, it offers a transmit power of 10dBm and a receive sensitivity of -91dBm. The module is suitable for applications requiring reliable wireless connectivity, including industrial control systems, consumer electronics, and IoT devices. It interfaces via JTAG and SPI serial protocols and operates within a voltage range of 2.7V to 3.6V, with current consumption of 85mA (receiving) and 115mA to 154mA (transmitting). The MRF24WB0MA-RM is supplied in trays.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Sensitivity | -91dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz |
| Memory Size | - |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.7V ~ 3.6V |
| Power - Output | 10dBm |
| Data Rate | 2Mbps |
| Protocol | 802.11b |
| Current - Receiving | 85mA |
| Current - Transmitting | 115mA ~ 154mA |
| Antenna Type | Integrated, Trace |
| Utilized IC / Part | - |
| Modulation | DSSS |
| RF Family/Standard | WiFi |
| Serial Interfaces | JTAG, SPI |
| Programmable | Not Verified |
