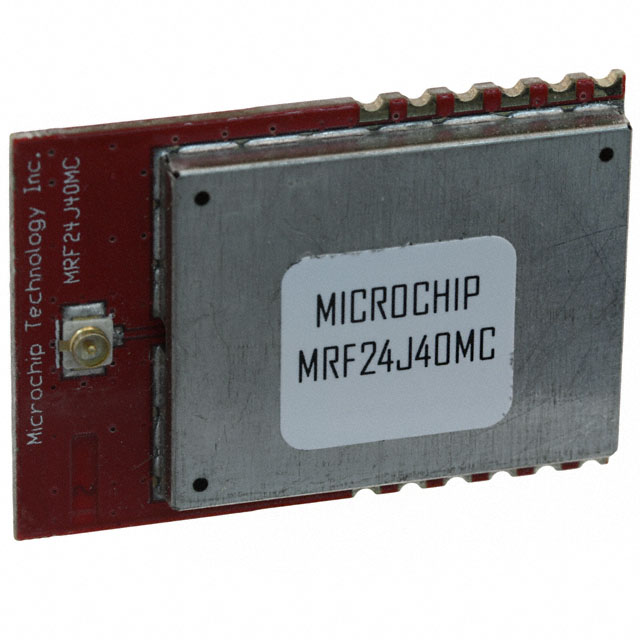

MRF24J40MC-I/RM
RF TXRX MODULE 802.15.4U.FL SMDManufacturer: Microchip Technology
Categories: RF Transceiver Modules and Modems
Quality Control: Learn More
Microchip Technology's MRF24J40MC-I-RM is a 2.4GHz 802.15.4 Zigbee® transceiver module, designed for robust wireless connectivity. This surface-mount module features a U.FL connector for antenna attachment and operates across a broad temperature range of -40°C to 85°C. It supports data rates up to 250kbps and offers a transmit power of 19dBm, with receiving current draw at 25mA and transmitting at 120mA. The module utilizes an SPI serial interface for communication. Applications for this component are found in industrial automation, smart home devices, and wireless sensor networks. The voltage supply range is 2.4V to 3.6V.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Sensitivity | -108dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz |
| Memory Size | - |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.4V ~ 3.6V |
| Power - Output | 19dBm |
| Data Rate | 250kbps |
| Protocol | Zigbee® |
| Current - Receiving | 25mA |
| Current - Transmitting | 120mA |
| Antenna Type | Antenna Not Included, U.FL |
| Utilized IC / Part | - |
| Modulation | - |
| RF Family/Standard | 802.15.4 |
| Serial Interfaces | SPI |
| Programmable | Not Verified |
