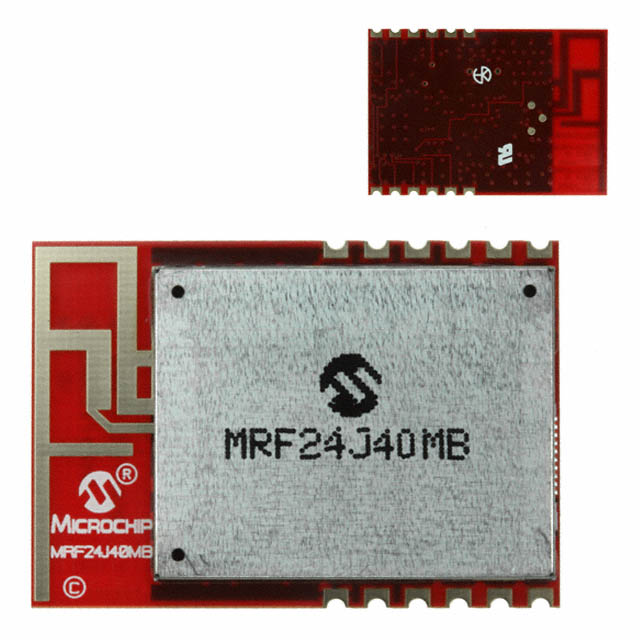

MRF24J40MB-I/RM

RF TXRX MOD 802.15.4 TH SMD

Manufacturer: Microchip Technology

Categories: RF Transceiver Modules and Modems

Quality Control: Learn More

The Microchip Technology MRF24J40MB-I-RM is a 2.4GHz 802.15.4 compliant RF transceiver module with an integrated trace antenna. This surface mount module operates within the 2.4GHz ISM band, supporting a data rate of 250kbps. It features an integrated Zigbee® protocol stack, simplifying implementation for developers. Key operating parameters include a receiving current of 25mA and a transmitting current of 130mA, with a maximum output power of 20dBm. The module achieves a sensitivity of -102dBm, ensuring robust communication. Interfacing is facilitated via an SPI serial interface. The operating temperature range is -40°C to 85°C, and it is supplied in Tray packaging. This component is well-suited for applications in industrial automation, smart home devices, and wireless sensor networks.

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: UnknownPackaging: TrayDatasheet:
Technical Details:
PackagingTray
Package / CaseModule
Sensitivity-102dBm
Mounting TypeSurface Mount
Frequency2.4GHz
Memory Size-
Operating Temperature-40°C ~ 85°C
Voltage - Supply2.4V ~ 3.6V
Power - Output20dBm
Data Rate250kbps
ProtocolZigbee®
Current - Receiving25mA
Current - Transmitting130mA
Antenna TypeIntegrated, Trace
Utilized IC / Part-
Modulation-
RF Family/Standard802.15.4
Serial InterfacesSPI
ProgrammableNot Verified
