ATZB-A24-UFL
RF TXRX MODULE 802.15.4U.FL SMDManufacturer: Microchip Technology
Categories: RF Transceiver Modules and Modems
Quality Control: Learn More
Microchip Technology's ZigBit™ ATZB-A24-UFL is a 2.4GHz 802.15.4 transceiver module utilizing the AT86RF230 IC. This surface mount module offers a robust solution for low-power wireless applications, supporting Zigbee® protocol with a data rate of 250kbps. Key specifications include a transmit power of 20dBm, a receive sensitivity of -104dBm, and operating current draws of 50mA (transmit) and 23mA (receive). On-board memory comprises 128kB Flash, 4kB EEPROM, and 8kB RAM. The module features multiple serial interfaces including I2C, JTAG, SPI, UART, and USART for flexible integration. Designed for a supply voltage range of 3V to 3.6V, it operates within an ambient temperature range of -20°C to 70°C. The ATZB-A24-UFL is packaged as a PCB module and requires an external antenna connected via a U.FL connector. This component is frequently employed in industrial automation, smart home devices, and connected sensor networks.
Additional Information
Series: ZigBit™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | PCB Module |
| Sensitivity | -104dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz |
| Memory Size | 128kB Flash, 4kB EEPROM, 8kB RAM |
| Operating Temperature | -20°C ~ 70°C |
| Voltage - Supply | 3V ~ 3.6V |
| Power - Output | 20dBm |
| Data Rate | 250kbps |
| Protocol | Zigbee® |
| Current - Receiving | 23mA |
| Current - Transmitting | 50mA |
| Antenna Type | Antenna Not Included, U.FL |
| Utilized IC / Part | AT86RF230 |
| Modulation | - |
| RF Family/Standard | 802.15.4 |
| Serial Interfaces | I2C, JTAG, SPI, UART, USART |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy
ATZB-24-A2
RF TXRX MOD 802.15.4 CHIP SMD

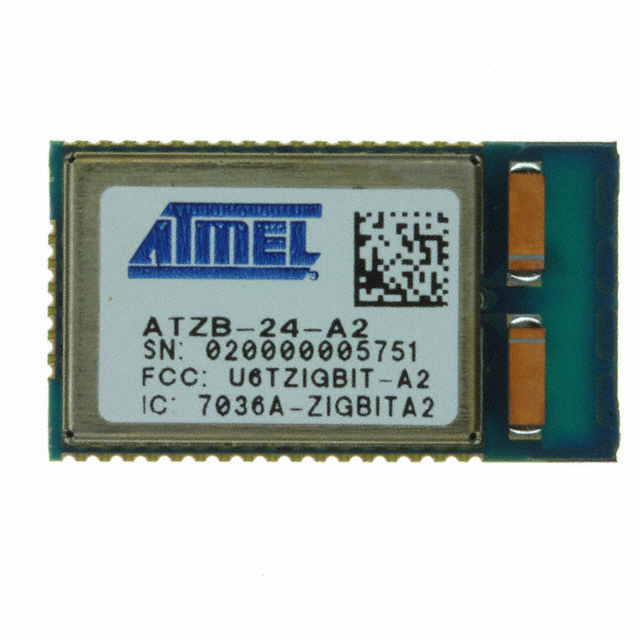

ATZB-24-A2R
RF TXRX MOD 802.15.4 CHIP SMD

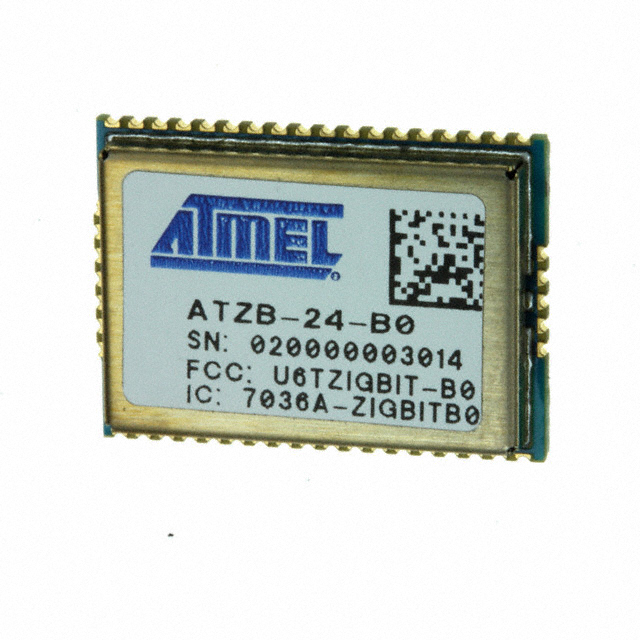

ATZB-24-B0
