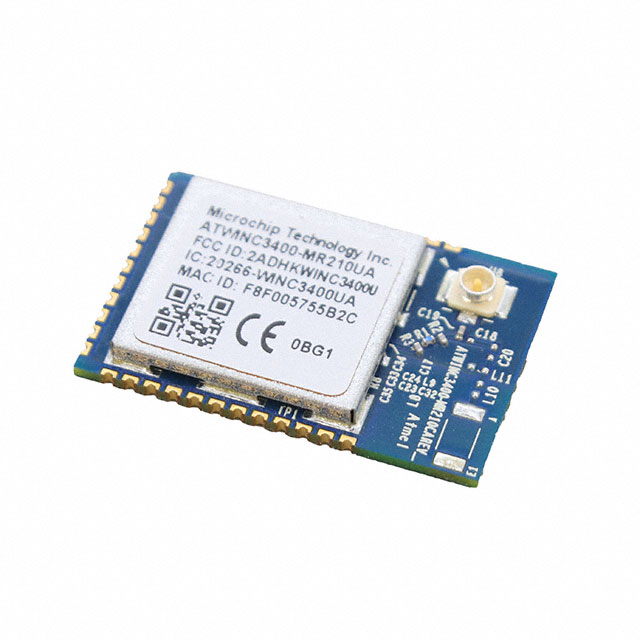

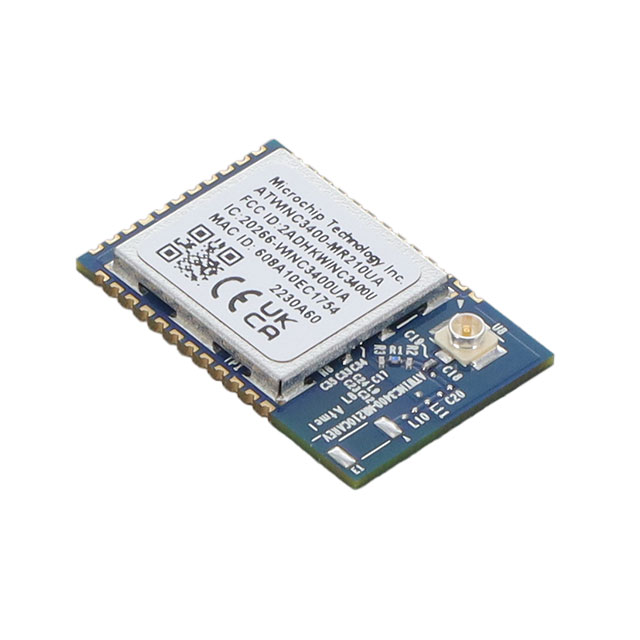

ATWINC3400-MR210UA
RF TXRX MODULE WIFI U.FL SMDManufacturer: Microchip Technology
Categories: RF Transceiver Modules and Modems
Quality Control: Learn More
The Microchip Technology ATWINC3400-MR210UA is a 2.4GHz Wi-Fi 802.11b/g/n transceiver module designed for surface mounting. This module offers a data rate of up to 72.2Mbps and operates within the 2.4GHz to 2.48GHz frequency band. Key features include 256kB ROM and 708kB RAM, with a transmit power of 20dBm and a receive sensitivity of -98dBm. The ATWINC3400-MR210UA supports multiple serial interfaces, including I2C, SPI, and UART, facilitating integration into various system architectures. The module is supplied in a tray package, requires a 3.3V supply voltage, and has an operating temperature range of -40°C to 85°C. It features a U.FL connector for antenna connection, with the antenna sold separately. This component is widely adopted in industrial automation, smart home devices, and consumer electronics applications requiring reliable wireless connectivity.
Additional Information
Series: ATWINC3400-MR210xARoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Sensitivity | -98dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz ~ 2.48GHz |
| Memory Size | 256kB ROM, 708kB RAM |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3.3V |
| Power - Output | 20dBm |
| Data Rate | 72.2Mbps |
| Protocol | 802.11b/g/n |
| Current - Receiving | - |
| Current - Transmitting | - |
| Antenna Type | Antenna Not Included, U.FL |
| Utilized IC / Part | - |
| Modulation | - |
| RF Family/Standard | WiFi |
| Serial Interfaces | I2C, SPI, UART |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

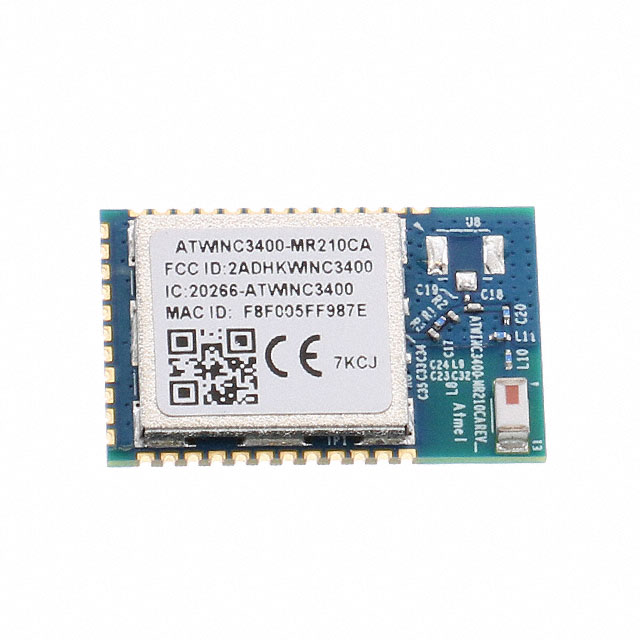

ATWINC3400-MR210CA122
RF TXRX MODULE WIFI CHIP SMD

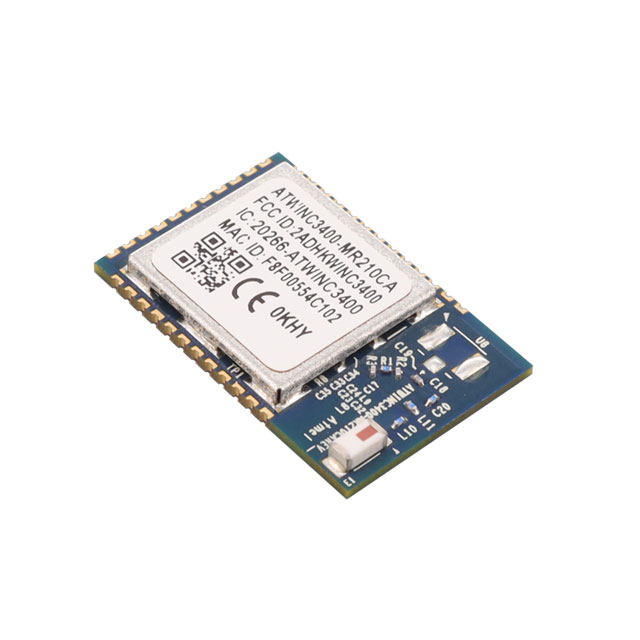

ATWINC3400-MR210CA122-T
RF TXRX MODULE WIFI CHIP SMD

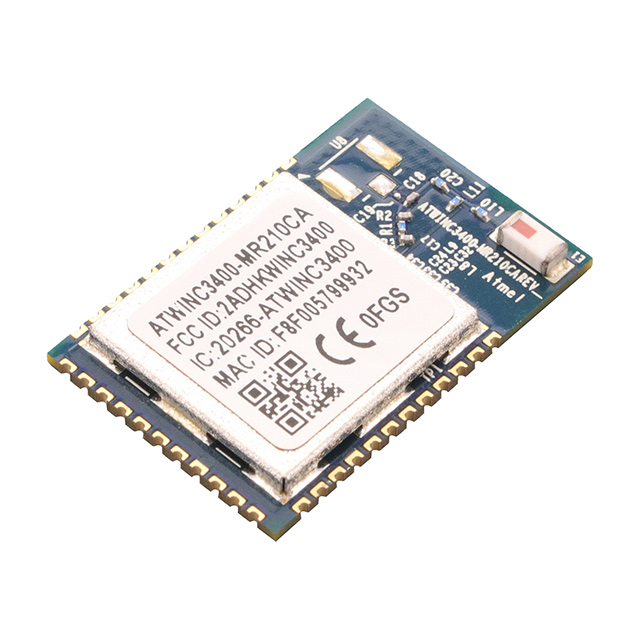

ATWINC3400-MR210CA131
