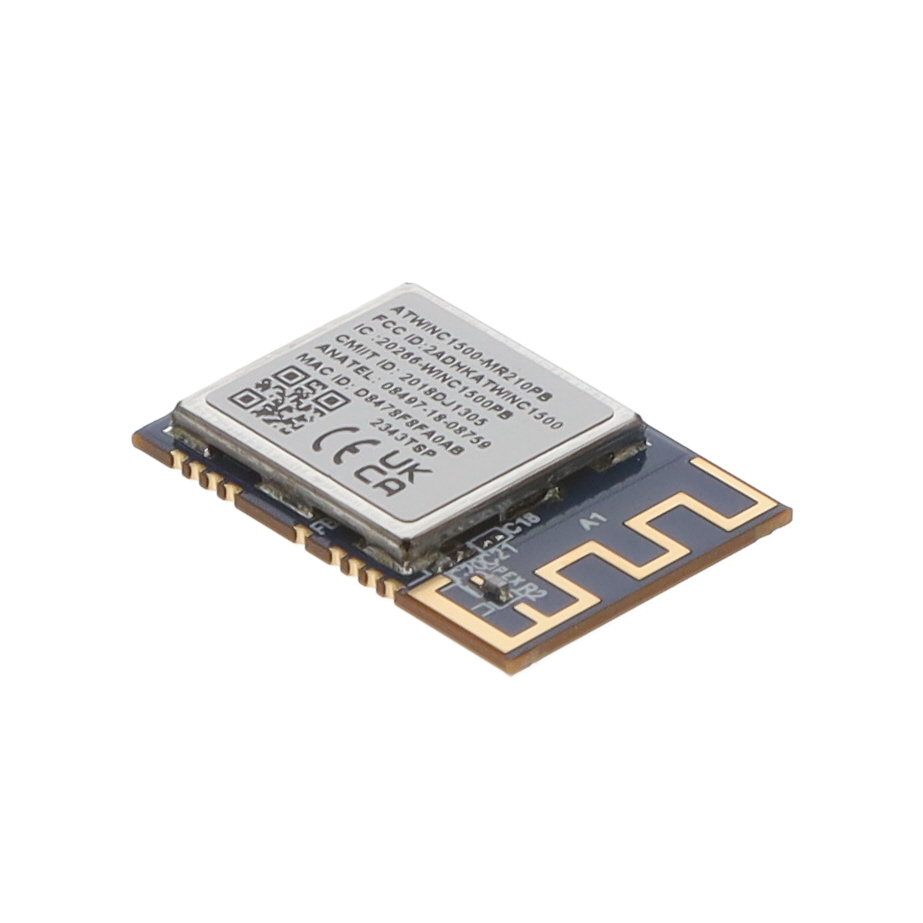

ATWINC1500-MR210PB1976
RF TXRX MOD WIFI TH SMDManufacturer: Microchip Technology
Categories: RF Transceiver Modules and Modems
Quality Control: Learn More
WiFi 802.11b/g/n Transceiver Module 2.4GHz Integrated, Trace Surface Mount
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 28-SMD Module |
| Sensitivity | -95dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz |
| Memory Size | 4MB Flash, 128kB RAM |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.7V ~ 3.6V |
| Power - Output | 18.9dBm |
| Data Rate | 72.2Mbps |
| Protocol | 802.11b/g/n |
| Current - Receiving | 61mA |
| Current - Transmitting | 264mA ~ 269mA |
| Antenna Type | Integrated, Trace |
| Utilized IC / Part | ATWINC1500 |
| Modulation | 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DSSS, DQPSK, OFDM, QPSK |
| RF Family/Standard | WiFi |
| Serial Interfaces | I2C, SPI, UART |
| Programmable | Not Verified |
