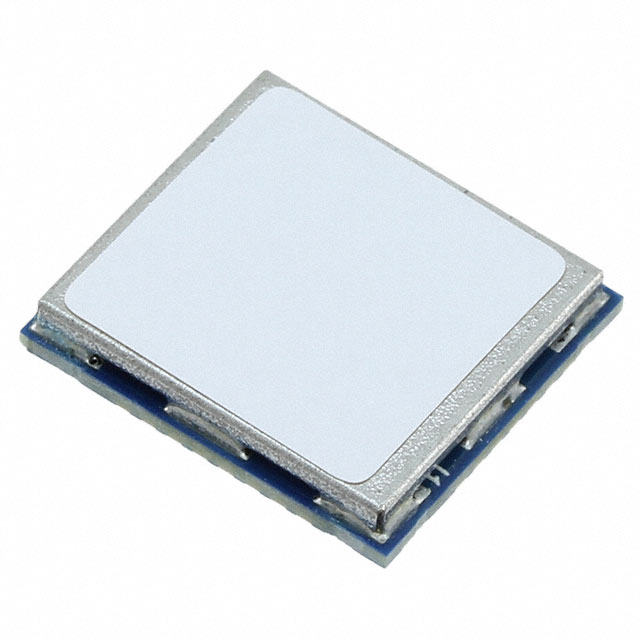

ATWILC1000-MR1100B
RF TXRX MODULE WIFI SMDManufacturer: Microchip Technology
Categories: RF Transceiver Modules and Modems
Quality Control: Learn More
Microchip Technology ATWILC1000-MR1100B is a 2.4GHz WiFi 802.11b/g/n transceiver module designed for surface mount applications. This component supports data rates up to 72.2Mbps and utilizes a variety of modulation schemes including 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, and QPSK. The module offers an output power of 19dBm and a receive sensitivity of -98dBm. Power consumption ranges from 29mA to 68mA during receiving and 29mA to 230mA during transmitting, with an operating voltage range of 3V to 4.2V. Connectivity is provided through I2C, SDIO, SPI, and UART serial interfaces. The ATWILC1000-MR1100B is suitable for various industrial applications including IoT devices, smart home automation, and consumer electronics. It is supplied in a 28-SMD Module, Exposed Pad package and is available in tray packaging. Antenna is not included.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 28-SMD Module, Exposed Pad |
| Sensitivity | -98dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz |
| Memory Size | - |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3V ~ 4.2V |
| Power - Output | 19dBm |
| Data Rate | 72.2Mbps |
| Protocol | 802.11b/g/n |
| Current - Receiving | 29mA ~ 68mA |
| Current - Transmitting | 29mA ~ 230mA |
| Antenna Type | Antenna Not Included |
| Utilized IC / Part | - |
| Modulation | 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK |
| RF Family/Standard | WiFi |
| Serial Interfaces | I2C, SDIO, SPI, UART |
| Programmable | Not Verified |
