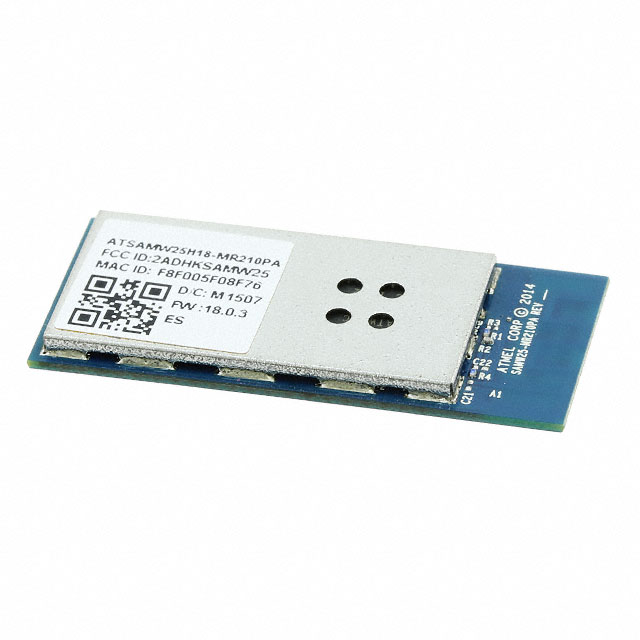

ATSAMW25H18-MR210PA
RF TXRX MOD WIFI TH SMDManufacturer: Microchip Technology
Categories: RF Transceiver Modules and Modems
Quality Control: Learn More
Microchip Technology ATSAMW25H18-MR210PA, a WiFi 802.11b/g/n transceiver module, operates in the 2.4GHz band. This surface mount module features an integrated trace antenna and delivers a maximum transmit power of 17dBm, with a data rate of up to 65Mbps. It includes 256kB of Flash and 32kB of SRAM for on-chip operation. The ATSAMW25H18-MR210PA supports SPI and UART serial interfaces and is designed for a supply voltage range of 2.7V to 4.2V. Its sensitivity is rated at -95.5dBm. This component is suitable for applications in smart home devices, industrial automation, and consumer electronics. The module is supplied in bulk packaging and operates within an ambient temperature range of -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Sensitivity | -95.5dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz |
| Memory Size | 256kB Flash, 32kB SRAM |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.7V ~ 4.2V |
| Power - Output | 17dBm |
| Data Rate | 65Mbps |
| Protocol | 802.11b/g/n |
| Current - Receiving | - |
| Current - Transmitting | - |
| Antenna Type | Integrated, Trace |
| Utilized IC / Part | - |
| Modulation | - |
| RF Family/Standard | WiFi |
| Serial Interfaces | SPI, UART |
| Programmable | Not Verified |
