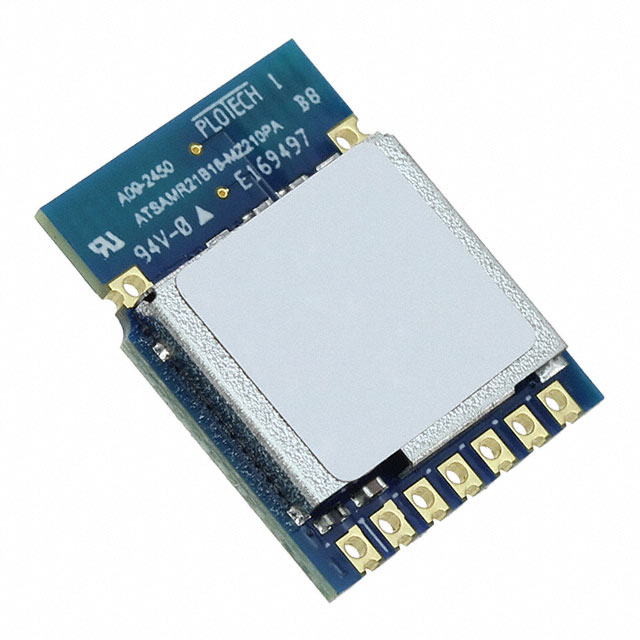

ATSAMR21B18-MZ210PA
RF TXRX MOD 802.15.4 TH SMDManufacturer: Microchip Technology
Categories: RF Transceiver Modules and Modems
Quality Control: Learn More
The Microchip Technology ATSAMR21B18-MZ210PA is an 802.15.4 Zigbee® transceiver module operating at 2.4GHz. This trace-antenna integrated module is designed for surface mount applications and comes in Tray packaging. It features 256kB of Flash memory and supports SPI and UART serial interfaces. Typical current consumption is 11.8mA for receiving and 13.8mA for transmitting, with an output power of -1dBm. The module operates within a supply voltage range of 2.7V to 3.6V and is rated for an operating temperature of -40°C to 125°C. This component is utilized in various industrial automation, smart home, and connected sensing applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Sensitivity | - |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz |
| Memory Size | 256kB Flash |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 2.7V ~ 3.6V |
| Power - Output | -1dBm |
| Data Rate | - |
| Protocol | Zigbee® |
| Current - Receiving | 11.8mA |
| Current - Transmitting | 13.8mA |
| Antenna Type | Integrated, Trace |
| Utilized IC / Part | - |
| Modulation | - |
| RF Family/Standard | 802.15.4 |
| Serial Interfaces | SPI, UART |
| Programmable | Not Verified |
