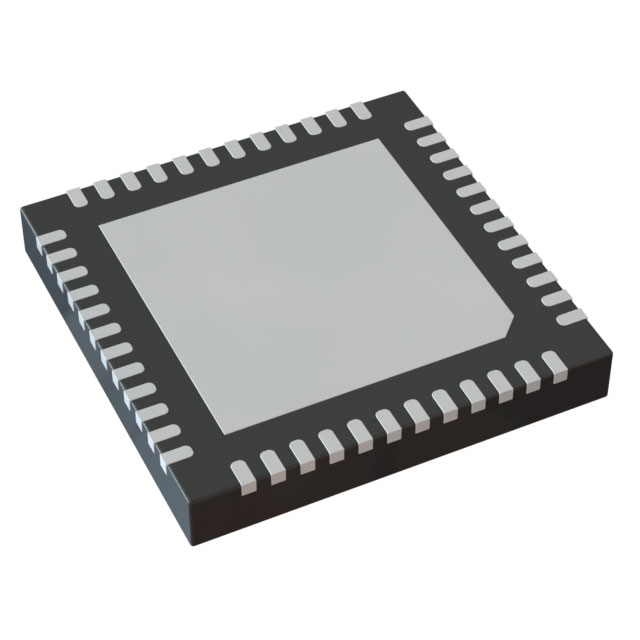

PIC32CX1012BZ25048-I/MYX
IC RF TXRX+MCU 802.15.4 48VQFNManufacturer: Microchip Technology
Categories: RF Transceiver ICs
Quality Control: Learn More
IC RF TxRx + MCU 802.15.4, Bluetooth Bluetooth v5.2, Class 2, Zigbee® 2.4GHz 48-VFQFN Exposed Pad
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 7 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 48-VFQFN Exposed Pad |
| Sensitivity | -103dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz |
| Memory Size | 1MB Flash, 128kB RAM |
| Type | TxRx + MCU |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 1.9V ~ 3.6V |
| Power - Output | 12dBm |
| Protocol | Bluetooth v5.2, Class 2, Zigbee® |
| Current - Receiving | 9.8mA ~ 40.6mA |
| Data Rate (Max) | 3Mbps |
| Current - Transmitting | 15mA ~ 96.7mA |
| Supplier Device Package | 48-VQFN (7x7) |
| GPIO | 48 |
| Modulation | DSSS, MSK, QPSK |
| RF Family/Standard | 802.15.4, Bluetooth |
| Serial Interfaces | ADC, GPIO, HCI, I2C, IrDA, JTAG, PWM, SPI, UART, USART |
| Programmable | Not Verified |
