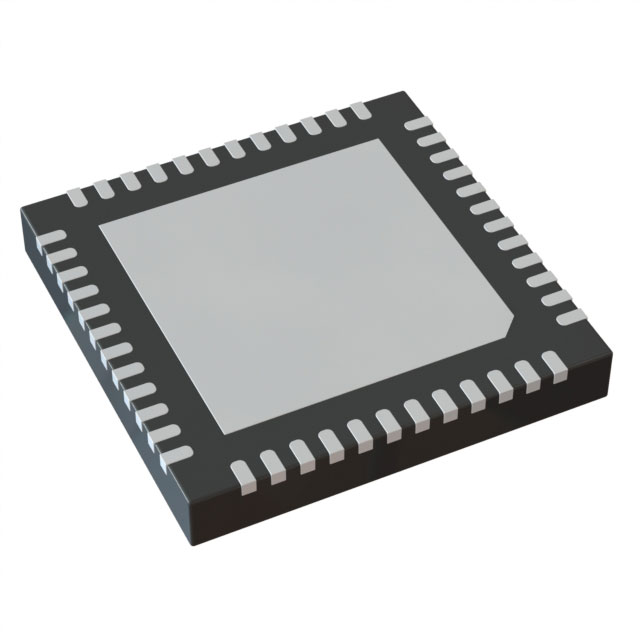

ATA5812C-PLQW
IC RF TXRX ISM<1GHZ 48VQFNManufacturer: Microchip Technology
Categories: RF Transceiver ICs
Quality Control: Learn More
Microchip Technology's ATA5812C-PLQW is a highly integrated RF transmitter/receiver IC designed for general ISM band applications below 1GHz, specifically operating at 315MHz. This component features a compact 48-VQFN (7x7) exposed pad package for surface mounting. The ATA5812C-PLQW supports ASK and FSK modulation, achieving a maximum data rate of 20kBaud. It offers a transmit power of up to 10dBm and a receiver sensitivity of -116.5dBm. Operating current in receive mode is typically 10.3mA to 10.5mA, while transmit current ranges from 8.5mA to 17.8mA. The device utilizes an SPI serial interface for control and configuration. With an operating temperature range of -40°C to 105°C and a supply voltage range of 2.4V to 3.6V, this IC is suitable for various applications including automotive, industrial control, and smart home systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-VFQFN Exposed Pad |
| Sensitivity | -116.5dBm |
| Mounting Type | Surface Mount |
| Frequency | 315MHz |
| Memory Size | - |
| Type | TxRx Only |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply | 2.4V ~ 3.6V |
| Power - Output | 10dBm |
| Protocol | - |
| Current - Receiving | 10.3mA ~ 10.5mA |
| Data Rate (Max) | 20kBaud |
| Current - Transmitting | 8.5mA ~ 17.8mA |
| Supplier Device Package | 48-VQFN (7x7) |
| Modulation | ASK, FSK |
| RF Family/Standard | General ISM < 1GHz |
| Serial Interfaces | SPI |
| Programmable | Not Verified |
