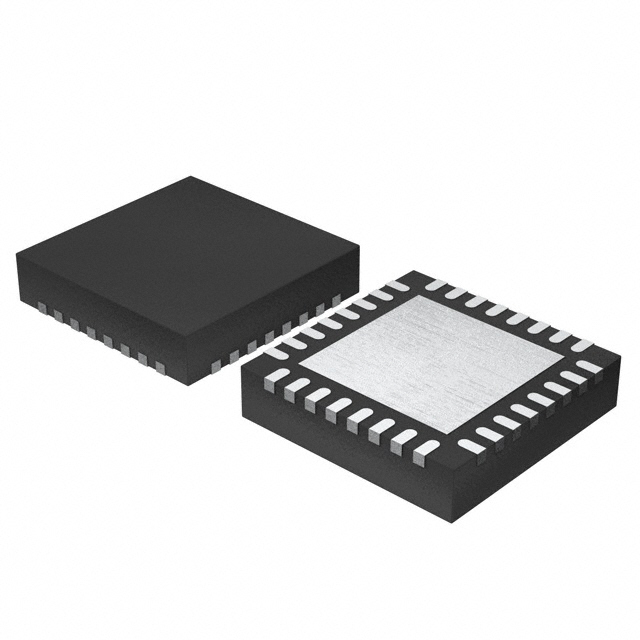

AT86RF233-ZUS

IC RF TXRX+MCU 802.15.4 32QFN

Manufacturer: Microchip Technology

Categories: RF Transceiver ICs

Quality Control: Learn More

The Microchip Technology AT86RF233-ZUS is a highly integrated RF transceiver with an embedded microcontroller, designed for IEEE 802.15.4 and 2.4GHz ISM band applications. This device supports protocols such as 6LoWPAN and Zigbee®, offering a maximum data rate of 2Mbps and a transmission output power of up to 4dBm. Its high receiver sensitivity of -101dBm ensures reliable communication in challenging RF environments. Featuring a 128B SRAM, the AT86RF233-ZUS facilitates efficient data handling. The component utilizes O-QPSK modulation and operates over a voltage supply range of 1.8V to 3.6V. Its compact 32-QFN (5x5) package with an exposed pad, suitable for surface mounting, is ideal for space-constrained designs. Operating temperatures range from -40°C to 85°C. This transceiver is commonly employed in smart energy, industrial automation, and connected home applications. Power consumption is optimized, with typical receiving current at 11.3mA to 11.8mA and transmitting current between 7.2mA and 13.8mA. The device includes an SPI serial interface for communication.

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:
Technical Details:
PackagingTray
Package / Case32-VFQFN Exposed Pad
Sensitivity-101dBm
Mounting TypeSurface Mount
Frequency2.4GHz
Memory Size128B SRAM
TypeTxRx + MCU
Operating Temperature-40°C ~ 85°C
Voltage - Supply1.8V ~ 3.6V
Power - Output4dBm
Protocol6LoWPAN, Zigbee®
Current - Receiving11.3mA ~ 11.8mA
Data Rate (Max)2Mbps
Current - Transmitting7.2mA ~ 13.8mA
Supplier Device Package32-QFN (5x5)
ModulationO-QPSK
RF Family/Standard802.15.4, General ISM > 1GHz
Serial InterfacesSPI
ProgrammableNot Verified
