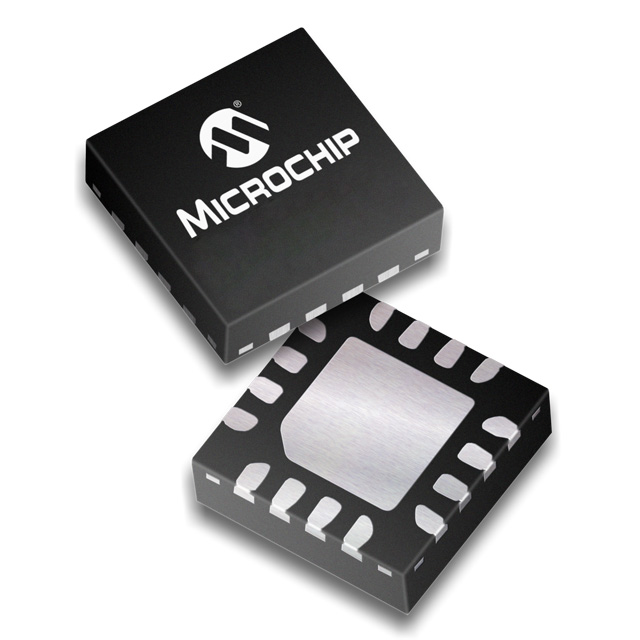

MMS008PP3/TR
IC RF SWITCH SP4T 8GHZ DIEManufacturer: Microchip Technology
Categories: RF Switches
Quality Control: Learn More
Microchip Technology's MMS008PP3-TR is a single-pole, four-throw (SP4T) RF switch IC designed for high-frequency applications. This absorptive switch operates across a frequency range from DC up to 8GHz, featuring a 50 Ohm impedance. Key performance metrics include an insertion loss of 1.7dB and an impressive isolation of 43dB at 8GHz. The device offers a P1dB of 29dBm and an IIP3 of 45dBm, making it suitable for demanding signal routing. Supplied as a die and packaged in Tape & Reel (TR), the MMS008PP3-TR is engineered for radar systems and other advanced RF front-end designs requiring robust performance within an operating temperature range of -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | Die |
| Impedance | 50Ohm |
| Circuit | SP4T |
| RF Type | Radar |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | - |
| Insertion Loss | 1.7dB |
| Frequency Range | 0Hz ~ 8GHz |
| Topology | Absorptive |
| P1dB | 29dBm |
| Test Frequency | 8GHz |
| Isolation | 43dB |
| Supplier Device Package | Die |
| IIP3 | 45dBm |
Request a Quote
Clients Also Buy
MMS008PP3
IC RF SWITCH SP4T 8GHZ DIE

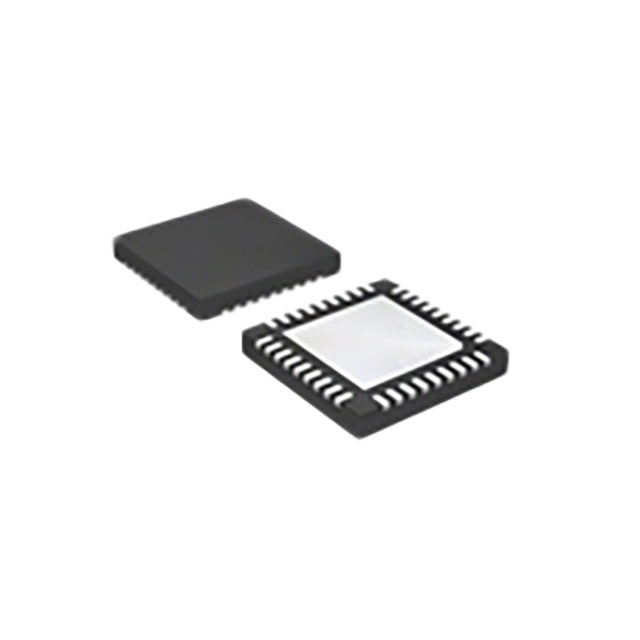

MMS006PP3
