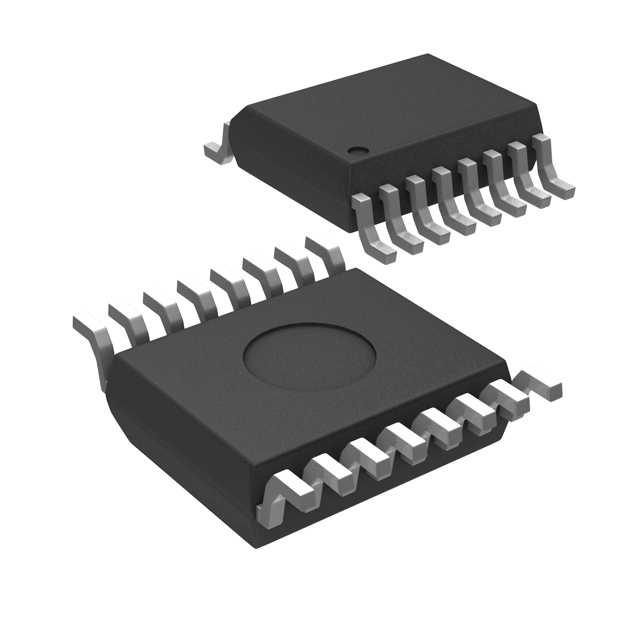

MICRF011YM-TR
RF RCVR OOK 300MHZ-440MHZ 14SOICManufacturer: Microchip Technology
Categories: RF Receivers
Quality Control: Learn More
The Microchip Technology MICRF011YM-TR is a highly integrated RF receiver operating across the 300MHz to 440MHz frequency range. Designed for On-Off Keying (OOK) modulation, this component delivers exceptional sensitivity of -103dBm at a maximum data rate of 10kbps. Key features include automatic tuning for simplified implementation and a low receiving current of 2.4mA. The device is supplied in a 14-SOIC package and utilizes a PCB-mounted antenna connection. Its robust performance and surface mount capability make it suitable for applications such as garage door openers. The operating temperature range is -40°C to 85°C, and it requires a supply voltage between 4.75V and 5.5V. This component is provided in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Automatic Tuning |
| Packaging | Tape & Reel (TR) |
| Package / Case | 14-SOIC (0.154"", 3.90mm Width) |
| Sensitivity | -103dBm |
| Mounting Type | Surface Mount |
| Frequency | 300MHz ~ 440MHz |
| Memory Size | - |
| Modulation or Protocol | OOK |
| Data Interface | PCB, Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 4.75V ~ 5.5V |
| Applications | Garage Openers |
| Current - Receiving | 2.4mA |
| Data Rate (Max) | 10kbps |
| Antenna Connector | PCB, Surface Mount |
| Supplier Device Package | 14-SOIC |
