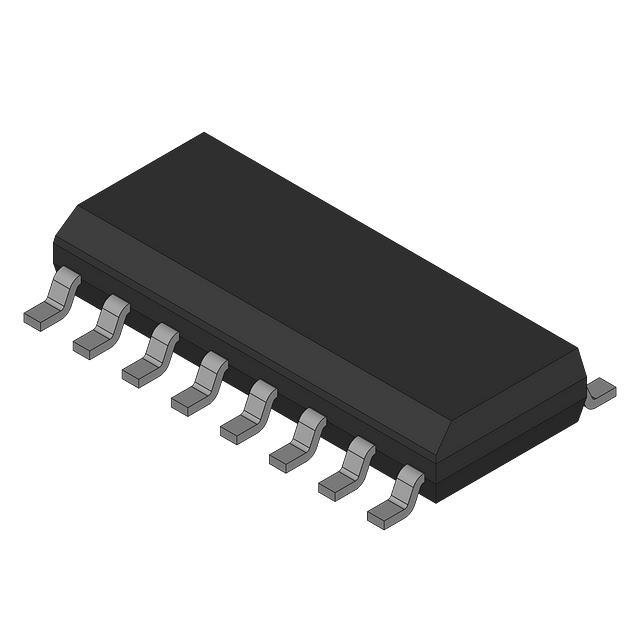

productimage

MICRF011BM

QWIKRADIO RX/DATA DEMODULATOR

Manufacturer: Microchip Technology

Categories: RF Receivers

Quality Control: Learn More

The Microchip Technology MICRF011BM is a highly sensitive, low-power ASK/OOK RF receiver designed for robust wireless communication. Operating within the 300MHz to 440MHz frequency range, this component achieves a remarkable sensitivity of -103dBm, enabling reliable data reception at rates up to 10kbps. Its automatic tuning feature simplifies system integration, requiring minimal external components. The MICRF011BM is packaged in a 14-SOIC surface-mount configuration, suitable for direct PCB mounting. With a typical receiving current draw of 2.4mA and a supply voltage range of 4.75V to 5.5V, it is an excellent choice for battery-powered applications. This device finds widespread use in consumer electronics, particularly in garage door openers and other remote control systems.

Additional Information

Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:
Technical Details:
FeaturesAutomatic Tuning
PackagingTube
Package / Case14-SOIC (0.154"", 3.90mm Width)
Sensitivity-103dBm
Mounting TypeSurface Mount
Frequency300MHz ~ 440MHz
Memory Size-
Modulation or ProtocolOOK
Data InterfacePCB, Surface Mount
Operating Temperature-40°C ~ 85°C
Voltage - Supply4.75V ~ 5.5V
ApplicationsGarage Openers
Current - Receiving2.4mA
Data Rate (Max)10kbps
Antenna ConnectorPCB, Surface Mount
Supplier Device Package14-SOIC
