RN-270F
ADAPTER DB9F RS232 TO BLUETOOTHManufacturer: Microchip Technology
Categories: RF Receiver, Transmitter, and Transceiver Finished Units
Quality Control: Learn More

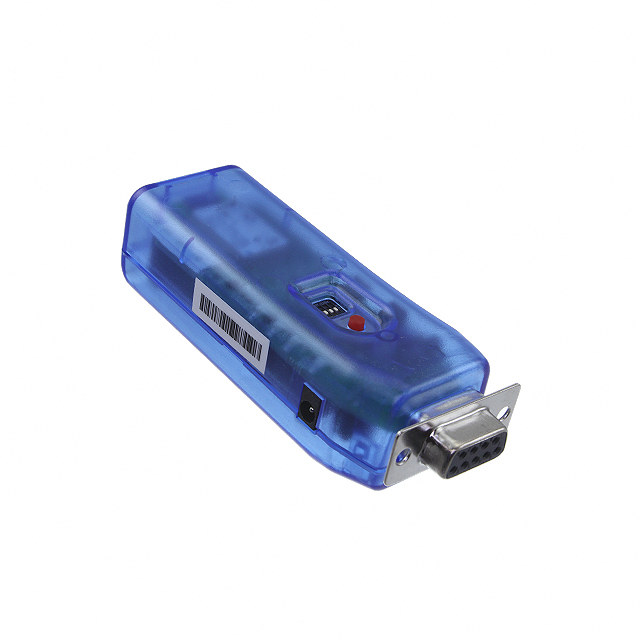

Microchip Technology RN-270F is a Bluetooth 2.1 +EDR Class 1 RF transceiver module providing a 2.4GHz wireless interface with an RS-232 DB9 connector. This unit facilitates seamless serial communication up to 234 kbaud over a range of up to 100 meters. Key specifications include +15dBm output power and a sensitivity of -70dBm, ensuring robust performance in various environments. The RN-270F is designed for applications requiring reliable wireless serial data transfer, commonly found in industrial automation, asset tracking, and point-of-sale systems. This component is supplied in a bag.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | 100m Range |
| Packaging | Bag |
| Sensitivity | -70dBm |
| Function | Transceiver, Bluetooth |
| Frequency | 2.4GHz |
| Interface | RS-232 (DB9) |
| Modulation or Protocol | Bluetooth 2.1 +EDR, Class 1 |
| Power - Output | 15dBm |
| Applications | Bluetooth |
| Data Rate (Max) | 234kBaud |
