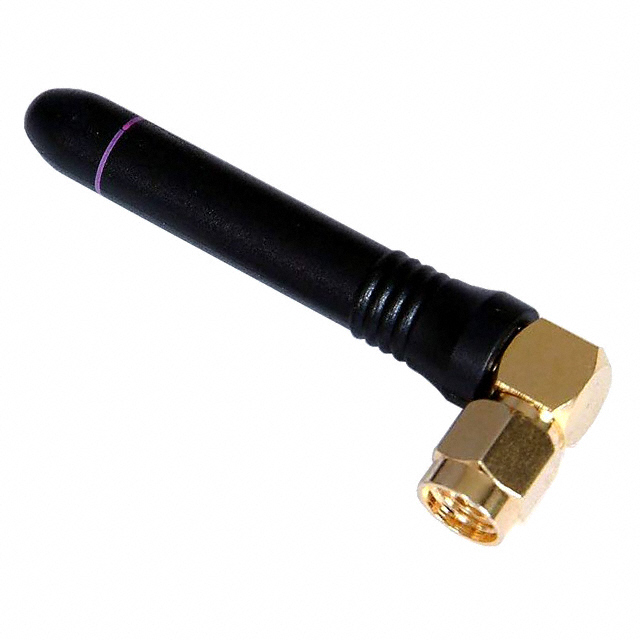

RN-SMA-RA
RF ANT 2.4GHZ WHP RA SMA ML 2.5Manufacturer: Microchip Technology
Categories: RF Antennas
Quality Control: Learn More
Microchip Technology RN-SMA-RA is a right-angle SMA male terminating whip antenna designed for 2.4GHz wireless applications. Operating within the UHF frequency band from 2.2GHz to 2.7GHz, this antenna offers a nominal gain of -1.2dBi. Its compact form factor, with a maximum height of 2.106 inches (53.50mm), facilitates integration into space-constrained designs. The antenna features a VSWR of 1.9, indicating efficient power transfer at its operating frequency. This component is commonly employed in industrial automation, smart home devices, and wireless networking equipment. The mounting type is connector mount, and it is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Mounting Type | Connector Mount |
| Frequency Range | 2.2GHz ~ 2.7GHz |
| Applications | - |
| Gain | -1.2dBi |
| Termination | SMA Male |
| Ingress Protection | - |
| Number of Bands | 1 |
| VSWR | 1.9 |
| Antenna Type | Whip, Right Angle |
| Height (Max) | 2.106"" (53.50mm) |
| Return Loss | - |
| Frequency Group | UHF (2GHz ~ 3GHz) |
| Frequency (Center/Band) | 2.4GHz |
| RF Family/Standard | - |
Request a Quote
Clients Also Buy

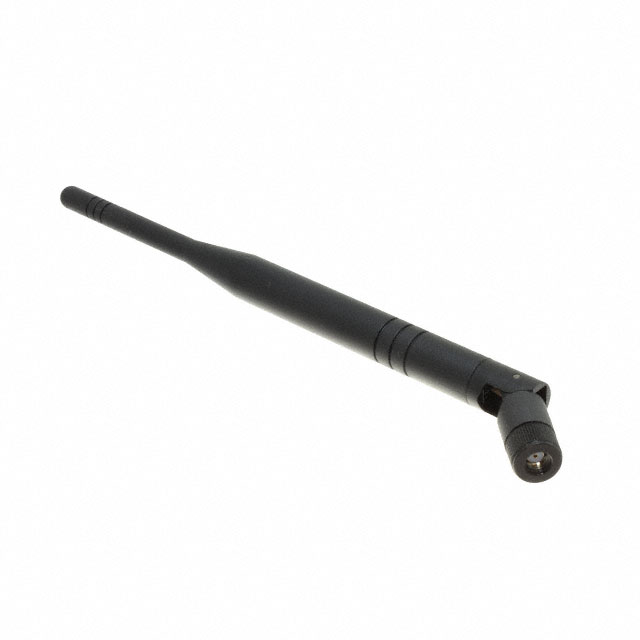

RN-SMA7-RP
RF ANT 2.4GHZ WHIP TILT RP-SMA

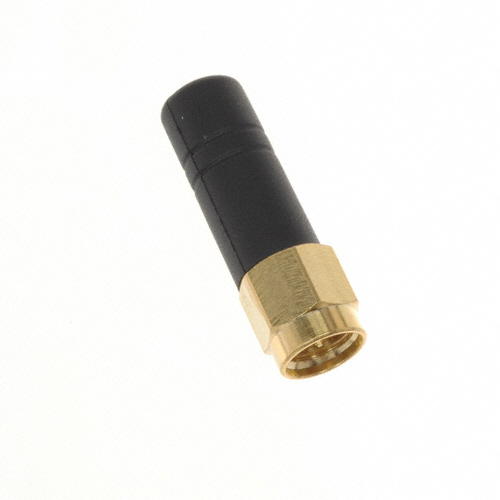

RN-SMA-S
RF ANT 2.4GHZ WHIP STR SMA ML 1

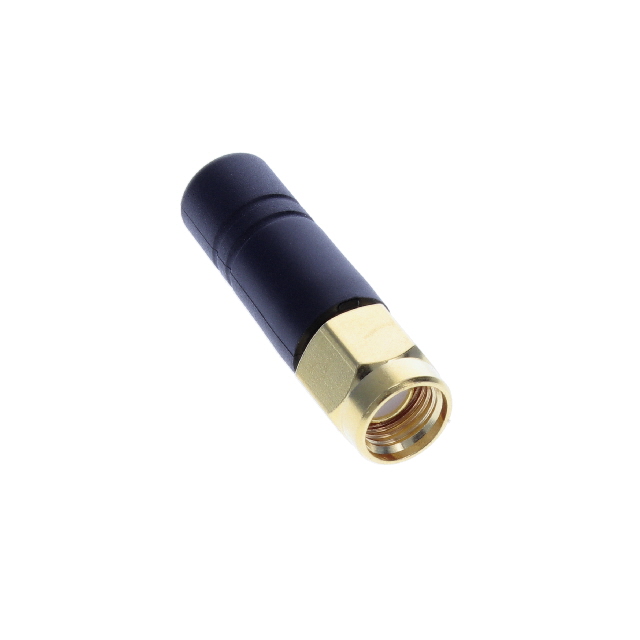

RN-SMA-S-RP
