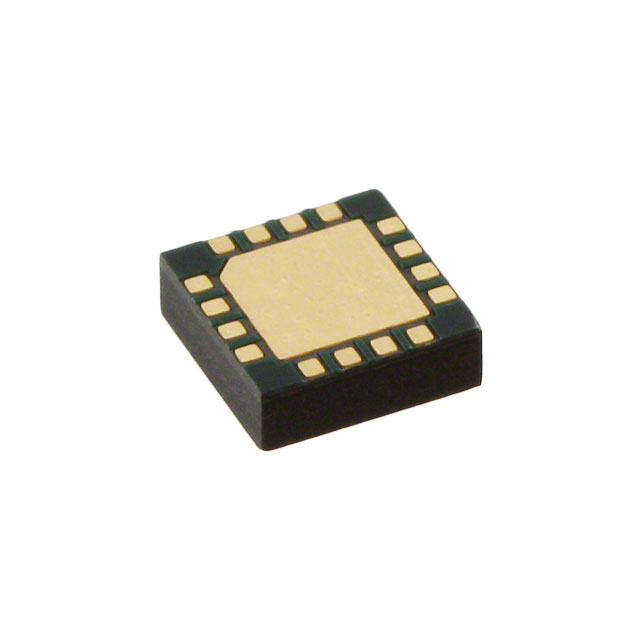

SST13LP05-MLCF
IC AMP 802.11A/B/G 2.4GHZ 16LGAManufacturer: Microchip Technology
Categories: RF Amplifiers
Quality Control: Learn More
The Microchip Technology SST13LP05-MLCF is a high-performance RF amplifier designed for Wireless LAN applications. This component supports 802.11a/b/g/WiFi standards and operates across the 2.4GHz to 2.5GHz and 4.9GHz to 5.8GHz frequency bands. It delivers a typical gain of 29dB and a P1dB output power of 25dBm, ensuring robust signal amplification. The device is housed in a compact 16-LFLGA (4x4) exposed pad package, suitable for surface mount assembly. With a supply voltage range of 3V to 3.6V and a current draw of 235mA, the SST13LP05-MLCF is engineered for efficient operation in demanding wireless communication systems. This amplifier is commonly utilized in Wi-Fi modules and other wireless networking infrastructure.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-LFLGA Exposed Pad |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.8GHz |
| RF Type | 802.11a/b/g/WiFi, WLAN |
| Voltage - Supply | 3V ~ 3.6V |
| Gain | 29dB |
| Current - Supply | 235mA |
| Noise Figure | - |
| P1dB | 25dBm |
| Test Frequency | 2.4GHz ~ 2.5GHz |
| Supplier Device Package | 16-LFLGA (4x4) |
