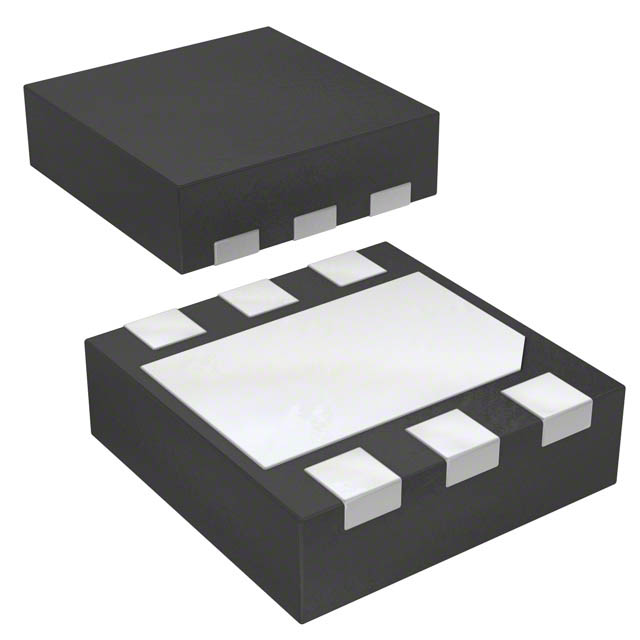

SST12LN01-QU6E
IC AMP 802.11B/G 2.4GHZ 6UQFNManufacturer: Microchip Technology
Categories: RF Amplifiers
Quality Control: Learn More
The Microchip Technology SST12LN01-QU6E is a highly efficient RF amplifier IC designed for 2.4GHz 802.11b/g applications. This component offers a typical gain of 14dB and a low noise figure of 1.55dB across its operating frequency range of 2.4GHz to 2.5GHz. Engineered for robust performance, it operates from a 3.3V supply with a low current draw of 11mA, making it suitable for power-sensitive wireless systems. The SST12LN01-QU6E is housed in a compact 6-UQFN (3x1.6) package with an exposed pad for enhanced thermal management, facilitating surface mount assembly. Its specifications are well-suited for integration into wireless networking equipment, IoT devices, and other communication platforms demanding reliable 2.4GHz radio frequency amplification. This device is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-UFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz ~ 2.5GHz |
| RF Type | 802.11b/g |
| Voltage - Supply | 3.3V |
| Gain | 14dB |
| Current - Supply | 11mA |
| Noise Figure | 1.55dB |
| P1dB | - |
| Test Frequency | 2.4GHz ~ 2.5GHz |
| Supplier Device Package | 6-UQFN (3x1.6) |
Request a Quote
