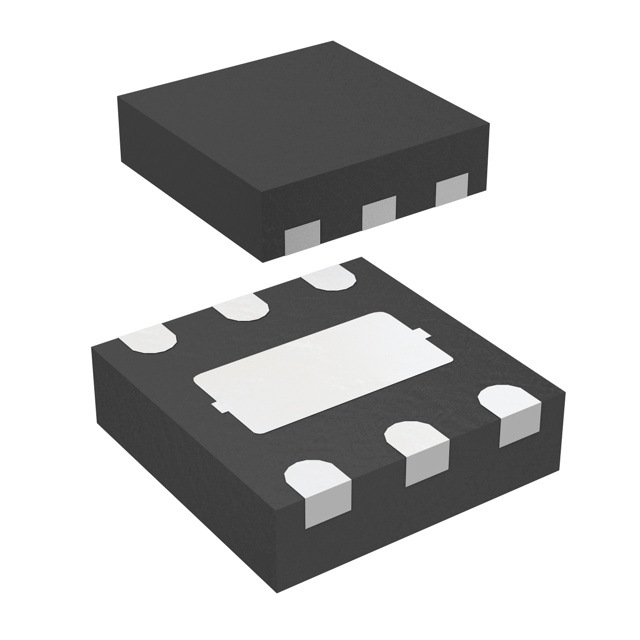

LX5563LL-TR
IC RF AMP GPS 2.4GHZ 6DFNManufacturer: Microchip Technology
Categories: RF Amplifiers
Quality Control: Learn More
Microchip Technology LX5563LL-TR is a 2.4GHz RF amplifier integrated circuit designed for general-purpose applications. This surface-mount component offers a typical gain of 14dB and a noise figure of 1.3dB, making it suitable for demanding RF front-end designs. The device operates over a supply voltage range of 3V to 3.6V. It is housed in a compact 6-XFDFN exposed pad package, specifically a 6-DFN (1.5x1.5) footprint, ideal for space-constrained board layouts. The LX5563LL-TR is supplied on tape and reel for automated manufacturing processes. Its performance characteristics position it for use in various wireless communication systems, including location services and personal communication devices.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-XFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz |
| RF Type | General Purpose |
| Voltage - Supply | 3V ~ 3.6V |
| Gain | 14dB |
| Current - Supply | - |
| Noise Figure | 1.3dB |
| P1dB | -3dBm |
| Test Frequency | - |
| Supplier Device Package | 6-DFN (1.5x1.5) |
