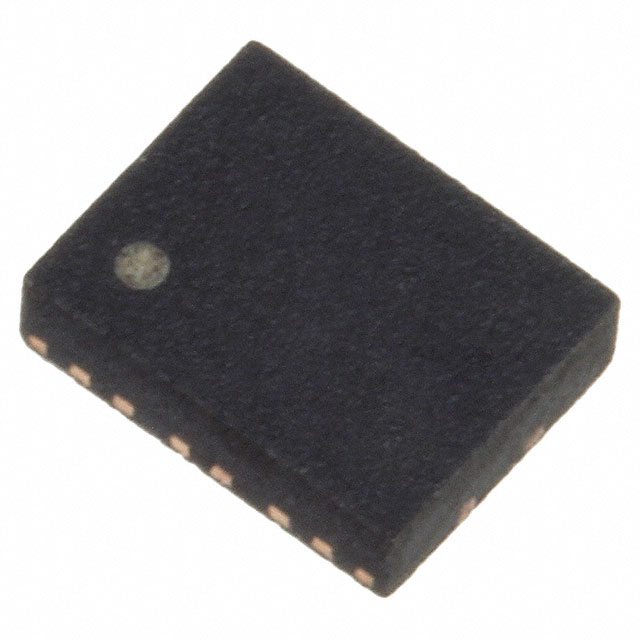

DSC8121CM1-PROGRAMMABLE
MEMS OSC PROG XO CMOS 2.25-3.6VManufacturer: Microchip Technology
Categories: Programmable Oscillators
Quality Control: Learn More
Microchip Technology DSC8121CM1-PROGRAMMABLE is a programmable XO (Standard) MEMS oscillator. This CMOS output device operates within a supply voltage range of 2.25V to 3.6V and supports an available frequency range from 10 MHz to 170 MHz. Featuring an Enable/Disable function, it is housed in a 6-SMD, No Lead package with dimensions of 3.20mm x 2.50mm x 0.90mm. The DSC8121 series offers a frequency stability of ±50ppm over an operating temperature range of -55°C to 125°C, with a maximum supply current of 35mA. This component is suitable for applications in the industrial, medical, and telecommunications sectors.
Additional Information
Series: DSC8121RoHS Status: ROHS3 CompliantManufacturer Lead Time: 40 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension | 0.126"" L x 0.098"" W (3.20mm x 2.50mm) |
| Mounting Type | Surface Mount |
| Output | CMOS |
| Function | Enable/Disable |
| Programmable Type | Programmed by Digi-Key (Enter your frequency in Web Order Notes) |
| Type | XO (Standard) |
| Operating Temperature | -55°C ~ 125°C |
| Frequency Stability | - |
| Voltage - Supply | 2.25V ~ 3.6V |
| Ratings | - |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 35mA |
| Height - Seated (Max) | 0.035"" (0.90mm) |
| Frequency Stability (Total) | ±50ppm |
| Available Frequency Range | 10 MHz ~ 170 MHz |
| Base Resonator | MEMS |
