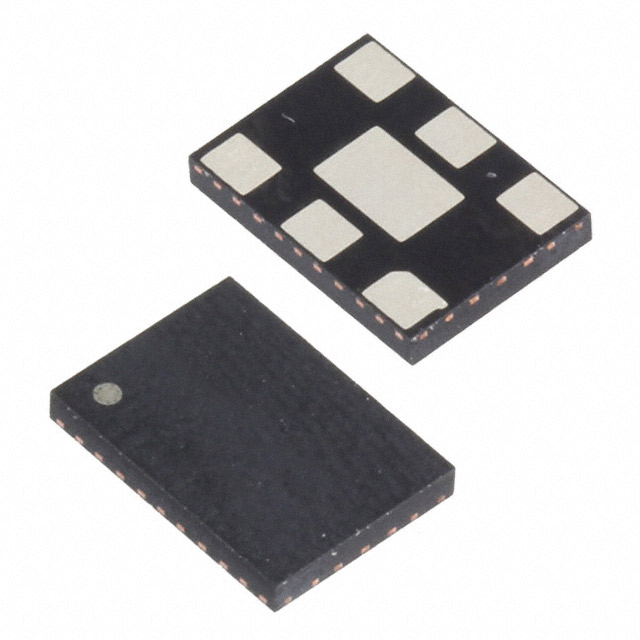

DSC8104AI5-PROGRAMMABLE
MEMS OSC PROG XO HCSL 2.25-3.6VManufacturer: Microchip Technology
Categories: Programmable Oscillators
Quality Control: Learn More
Microchip Technology's DSC8104AI5-PROGRAMMABLE is a MEMS-based, programmable XO oscillator. This device operates within a wide frequency range of 10 MHz to 460 MHz, offering flexibility for various applications. It features a standard XO output type with HCSL signaling, suitable for high-speed digital interfaces. The operating voltage range is 2.25V to 3.6V, with a maximum supply current of 42mA. Frequency stability is specified at ±10ppm. The component includes a standby function. Its compact 6-SMD, No Lead package (0.276" L x 0.197" W x 0.035" H) facilitates surface mounting. This AEC-Q100 qualified oscillator is designed for demanding environments and is utilized in automotive, industrial, and communication systems.
Additional Information
Series: DSC8104RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension | 0.276"" L x 0.197"" W (7.00mm x 5.00mm) |
| Mounting Type | Surface Mount |
| Output | HCSL |
| Function | Standby |
| Programmable Type | Programmed by Digi-Key (Enter your frequency in Web Order Notes) |
| Type | XO (Standard) |
| Operating Temperature | -40°C ~ 85°C |
| Frequency Stability | - |
| Voltage - Supply | 2.25V ~ 3.6V |
| Ratings | AEC-Q100 |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 42mA |
| Height - Seated (Max) | 0.035"" (0.90mm) |
| Frequency Stability (Total) | ±10ppm |
| Available Frequency Range | 10 MHz ~ 460 MHz |
| Base Resonator | MEMS |
